Bottling Line Pressure Regulation
Bottling lines are among the most demanding environments in food, beverage, dairy, and pharmaceutical manufacturing. From carbonation tanks and pasteurisers to filler bowls, cappers, CIP return headers, and reject systems, precise and reliable pressure regulation at every stage determines fill accuracy, product quality, shelf life, and line speed.
At Stork Solutions, we supply a comprehensive range of hygienic pressure transmitters, electronic pressure switches, digital pressure gauges, level sensors, and PID controllers — all purpose-designed for the conditions found on modern bottling lines. From flush-diaphragm sensors that resist fouling by pulp, syrup, and carbonated liquids, to IO-Link smart transmitters supporting Industry 4.0 line management, our products deliver the measurement performance, hygienic compliance, and digital connectivity that bottling operations require.
Product Spotlight for Bottling Line Pressure Regulation
Why Specialist Instrumentation Is Needed for Bottling Lines
Bottling line environments present a unique combination of challenges that general-purpose instrumentation cannot reliably handle:
Carbonated and foaming liquids — dissolved CO₂ creates dynamic pressure behaviour, foam formation, and temperature sensitivity that demand fast, accurate, and stable measurement
Frequent CIP/SIP cycles — aggressive cleaning chemicals (caustic, peracetic acid, chlorinated solutions) at elevated temperatures attack standard sensor materials and seals
Viscous and pulpy media — fruit juices with pulp, syrups, dairy products, sauces, and creams clog conventional pressure ports
High-speed filling — modern rotary fillers operating at 20,000–80,000 bottles/hour require fast-response pressure feedback for consistent fill volumes
Hygienic compliance — food safety regulations (EHEDG, FDA, 3-A) mandate flush-diaphragm, dead-space-free connections with low surface roughness
Wet and washdown environments — IP 67/IP 69 protection against daily high-pressure jet cleaning and foam washdowns
Multiple pressure zones — carbonation tank, pasteuriser, buffer tank, filler bowl, capper, and CIP system all require independent pressure control
Purpose-designed instruments with flush diaphragms, hygienic process connections, CIP/SIP compatibility, and digital communication ensure accurate, repeatable measurement across every zone on the bottling line.
Flush-Diaphragm Pressure Transmitters for Filling & Carbonation
The core measurement points on any bottling line — filler bowls, carbonation tanks, buffer vessels, and product supply lines — require flush-diaphragm sensors to prevent fouling and ensure hygienic operation.
DMP 331 P Industrial Pressure Transmitter — 100 mbar to 40 bar | 4–20 mA / 0–10 V | Flush stainless steel diaphragm | CIP/SIP to 150 °C | SIL 2 | Optional Hastelloy® / Tantalum diaphragm | Optional cooling element to 300 °C
DMP 331 P i Precision Pressure Transmitter — 400 mbar to 40 bar | Digital signal processing with active hysteresis, linearity & temperature correction | Turn-down 1:10 | Precision upgrade for filler bowl and carbonation tank pressure control
DMP 339P Flush Pressure Transmitter with G¼″ port — Compact flush-mount design for tight installation points on filler valves, manifold blocks, and inline product pipework
DMP 333P Pressure Transmitter — Flush diaphragm | Cooling element to 200 °C | including adhesives, pastes, and food products | Suitable for syrup, puree, and sauce bottling lines
Ceramic Sensor Transmitters for Aggressive CIP & Acidic Products
For bottling lines handling acidic beverages (fruit juice, wine, kombucha), carbonated soft drinks with citric acid, or dairy products subject to aggressive CIP chemistry, ceramic sensing elements provide inherent chemical resistance without oil-fill contamination risk.
DMK 351 P Pressure Transmitter for the Process Industry — Capacitive ceramic sensor (99.9% Al₂O₃) | 40 mbar to 20 bar | Dead-space-free hygienic connections (G1½″, dairy pipe, Clamp) | Intrinsically safe IS version | Ideal for dairy, juice, sauce & cream bottling
DMK 351 Pressure Transmitter — Capacitive ceramic sensor | ATEX certified | Excellent overpressure resistance | Suited to carbonated beverage lines where CO₂ pressure spikes occur
DMK 331 Industrial Pressure Transmitter — Capacitive ceramic sensor | 400 mbar to 600 bar | G½″ flush port | PVDF open port for aggressive cleaning chemicals | ATEX Ex ia | SIL 2
Precision Process Transmitters with HART® & SIL 2
For bottling line integration with PLC/SCADA systems, safety instrumented functions (SIF), and advanced process control:
X|act i Precision Pressure Transmitter (SIL 2) — 400 mbar to 40 bar | HART® | SIL 2 | Flush welded diaphragm | Varivent®, dairy pipe, Clamp | Cooling element option | Integrated display
X|act ci Precision Pressure Transmitter — Capacitive ceramic sensor (Al₂O₃ 99.9%) | 160 mbar to 20 bar | HART® option | IP 67 stainless steel | Hygienic connections
XMP i Precision Pressure Transmitter with HART® and SIL 2 — 400 mbar to 600 bar | Turn-down 1:10 | HART® | SIL 2 | Internal or flush welded diaphragm | Optional Hastelloy® / Tantalum | Cooling element to 300 °C | For pasteuriser and carbonation tank SIF applications
DMP 331i / DMP 333i Precision Pressure Transmitter — 400 mbar to 600 bar | 16-bit digital signal processing | Turn-down 1:10 | Communication interface for remote adjustment | Precision batch carbonation and filler pressure control
IO-Link Smart Transmitters for Digital Bottling Line Management
Modern bottling lines adopting Industry 4.0 strategies benefit from IO-Link’s digital diagnostics, predictive maintenance, simplified commissioning, and parameterisation across filling, pasteurisation, and CIP circuits.
DCT 533 P Industrial Pressure Transmitter with IO-Link — 100 mbar to 40 bar | IO-Link V1.1 | CIP/SIP to 150 °C | IP 67/IP 69 | Low surface roughness diaphragm | Stork technical article on IO-Link in hygienic processing highlights bottling as a key application
DCT 553 P Industrial Pressure Transmitter with IO-Link — Capacitive ceramic sensor | 40 mbar to 20 bar | IO-Link V1.1 | Dead-space-free | Food & pharmaceutical filling and packaging lines
DCT 531 P Industrial Pressure Transmitter with RS485 Modbus RTU — 100 mbar to 40 bar | RS485 Modbus RTU | EHEDG certified | CIP/SIP to 150 °C | Food-compatible oil option | For multi-drop digital bus architectures on bottling lines
Electronic Pressure Switches for Bottling Line Protection
Automated overpressure/underpressure alarms, filler bowl protection, carbonation tank safeguarding, CIP flow confirmation, and reject system activation:
DS 400 P Intelligent Electronic Pressure Switch — 100 mbar to 40 bar | Hygienic stainless steel | 1 or 2 PNP contacts | 4–20 mA | 4-digit LED display
DS 201 P Electronic Pressure Switch — 60–400 bar | Flush stainless steel diaphragm | Cooling element to 300 °C | Viscous/pasty media and food industry | 1, 2, or 4 PNP contacts + analogue output
DS 200 Electronic Pressure Switch — 100 mbar to 600 bar | Up to 4 independent PNP contacts | ATEX Ex ia | Welded sensor | For pasteuriser safety, carbonation tank overpressure, and CIP header pressure switching
DS 201 Electronic Pressure Switch — 400 mbar to 600 bar | Flush pressure ports for viscous, pasty & contaminated media | ATEX Ex ia | PVDF port option | For fruit pulp and sauce bottling lines
Low-Pressure & Vacuum Transmitters for Headspace & Deaeration
Bottling lines often include deaeration stages, vacuum filling systems, and headspace control on tanks where very low gauge or vacuum pressures must be monitored:
DMP 343 Industrial Pressure Transmitter — 10 mbar to 1,000 mbar | Excellent linearity and long-term stability | ATEX Ex ia | For deaerator vacuum monitoring and tank headspace control
DMP 331 Industrial Pressure Transmitter — 100 mbar to 60 bar | Piezoresistive silicon sensor | ATEX Ex ia | SIL 2 | General-purpose bottling line pressure monitoring including pasteuriser inlet/outlet and buffer tank control
Fast-Response Transmitters for High-Speed Filling
Modern high-speed rotary fillers operating at tens of thousands of bottles per hour require sub-millisecond pressure feedback to maintain consistent fill volumes and detect transient pressure events:
DMP 320 Precision Pressure Transmitter with Fast Response Time — 100 mbar to 600 bar | Response time ≤ 0.5 ms | 10 kHz internal sample rate | 0.1% FSO accuracy | Captures pressure curves, peaks, and impacts | Ideal for high-speed filler pressure feedback and water hammer detection in product pipework
Level Measurement for Buffer Tanks & Supply Vessels
Hydrostatic level monitoring for carbonation tanks, buffer tanks, syrup dosing vessels, and raw material storage:

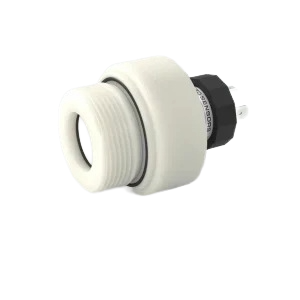

LMK 351 Screw-In Level Transmitter — 40 mbar to 20 bar | Capacitive ceramic sensor (99.9% Al₂O₃) | PVDF port for aggressive media | Flush-mounted for viscous/pasty media | Ideal for syrup and juice buffer tanks
LMK 331 Screw-In Level Transmitter — 400 mbar to 60 bar | Semi-flush sensor for viscous/polluted media | SIL 2 | For carbonation tank and pasteuriser vessel level control
LMP 331 Screw-In Level Transmitter — 100 mbar to 40 bar | 0.1% FSO accuracy option | SIL 2 | Flush G¾″ pressure port | For precision level control on dosing and blending vessels
Differential Pressure Transmitters for Filter & Pasteuriser Monitoring
Monitor pressure drop across inline filters, heat exchangers, plate pasteurisers, and CIP flow circuits:
DMD 331 Differential Pressure Transmitter — Piezoresistive stainless steel sensor | For liquids and gases | ATEX Ex ia | Pasteuriser plate ΔP and filter condition monitoring
DMD 831 Differential Pressure Transmitter with Display — Dual piezoresistive sensors | Integrated display and contact output | Visual ΔP indication for operators on the bottling line
DPT 100 Differential Pressure Transmitter — 10 mbar to 20 bar | Static pressure to 400 bar | RS485 Modbus RTU | For digital integration of filter ΔP data
