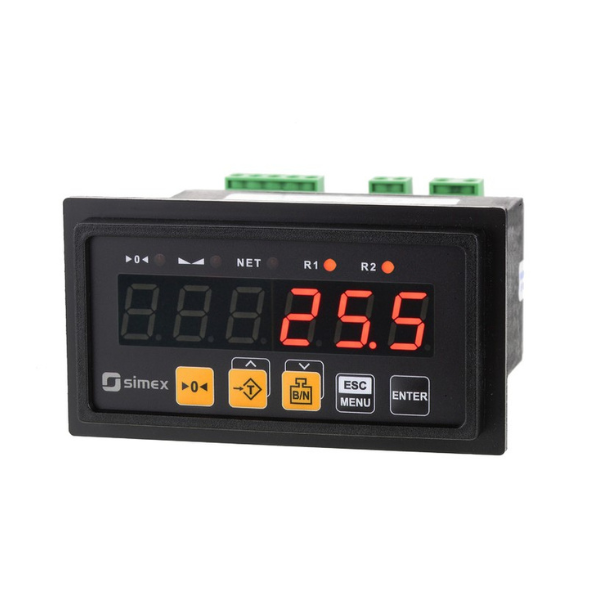

SWI-94 Weight Meter to Work with Load Cells in Weighing and Force Measurement Systems

Discover the SWI-94 Weight Meter: Optimised for industrial use, it simplifies load cell operations without needing legal metrology approval. This user-friendly meter has pushbuttons for tare and zero settings, and displays gross/net weights on a 6-digit LED screen. It features REL/OC outputs for signal level adjustment and offers easy calibration via software with data sheet or dead weight options. Customised with analogue outputs and configure via local keyboard or RS-485 port for enhanced industrial efficiency.

SWI 94 Weight Meter Product Parameters

  • Output Signal: Analogue output range 0/4-20 mA, 0/1-5V, 0/2-10V.
  • Accuracy: Display divisions max. 10,000 d.
  • Electrical Connections: Power supply 19V ÷ 50V DC/16V ÷ 35V AC/85 ÷ 260V AC/DC.
  • Process Connections: Compatible with 4-wire or 6-wire tensometer load cells.
  • Media Compatibility: Operating temp. 0°C to +50°C, storage temp. -10°C to +70°C.
  • Special Features: LED display, programmable digital input, REL/OC digital outputs.

Product Highlights

The SWI94 weight meter is an ideal solution for simple industrial applications that do not require legal metrology approval and involve the use of load cells or strain gages. It features user-friendly operating pushbuttons that facilitate tare weight setting, zero setting for an empty balance, and the display of both gross and net weight values. The measured mass is clearly presented on a 6-digit LED display for easy readability. The meter offers REL/OC control outputs, enabling precise adjustment of the measured signal level based on one or two threshold values. It also boasts versatile calibration capabilities, allowing users to choose between data sheet calibration or dead weight calibration methods. For added flexibility, the meter can be equipped with analogue outputs tailored to the customer’s needs, such as active current output, passive isolated current output, or active voltage output. Configuration can be effortlessly performed using the local keyboard or through the RS-485 communication port, ensuring seamless integration into various setups.

Features

  • Weight meter to work with load cells in weighing and force measurement systems
  • Inputs: tensometer load cells 4-wire or 6-wire, 1 x digital
  • Outputs: 2 x digital (REL or OC), 1 x analogue (active or passive)
  • Data sheet or dead weight calibration
  • High protection class IP 65 (front side)
  • RS-485 / Modbus RTU
  • Signal peak value detection

To download the latest datasheet click here: SWI 94
