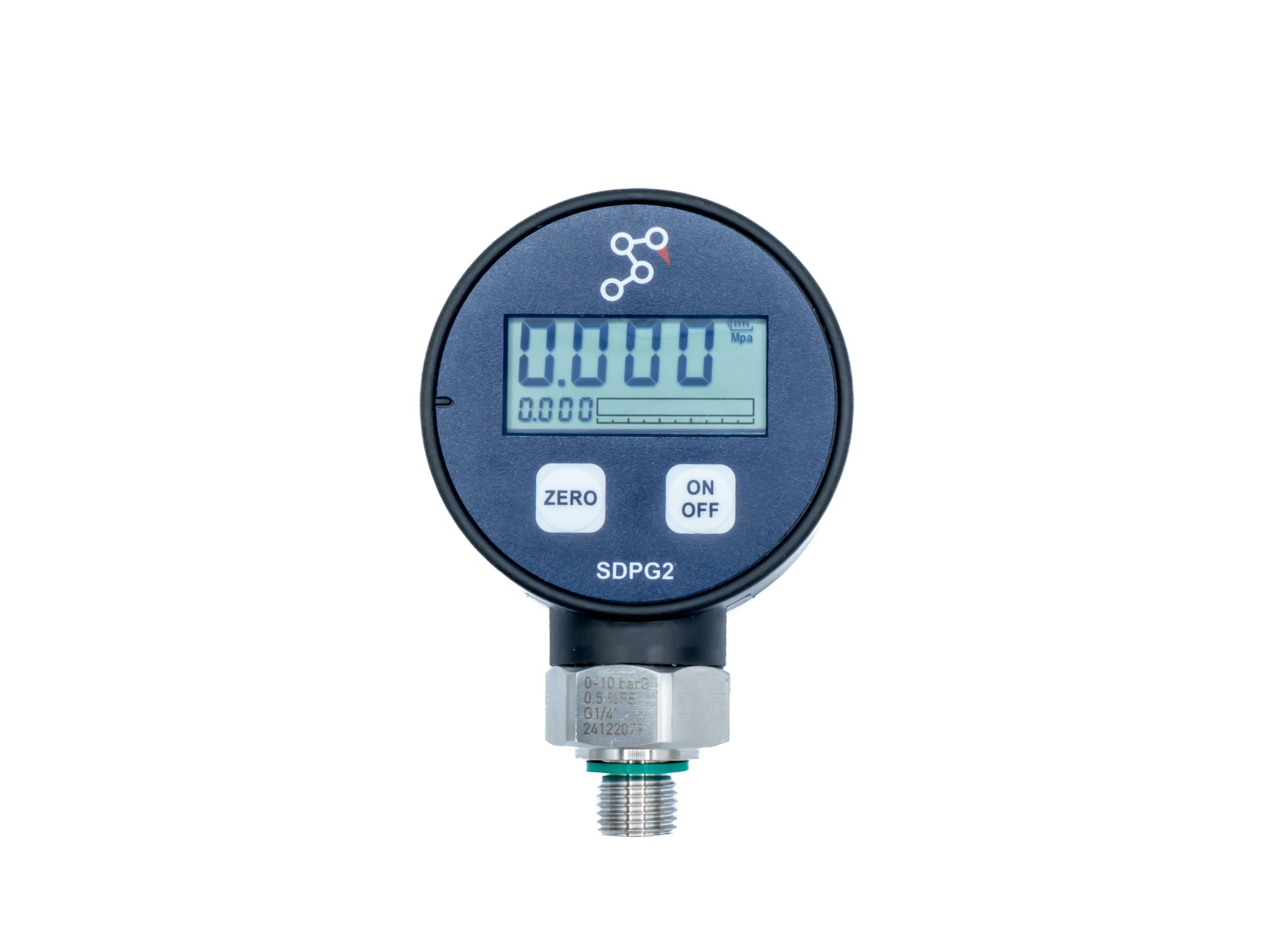

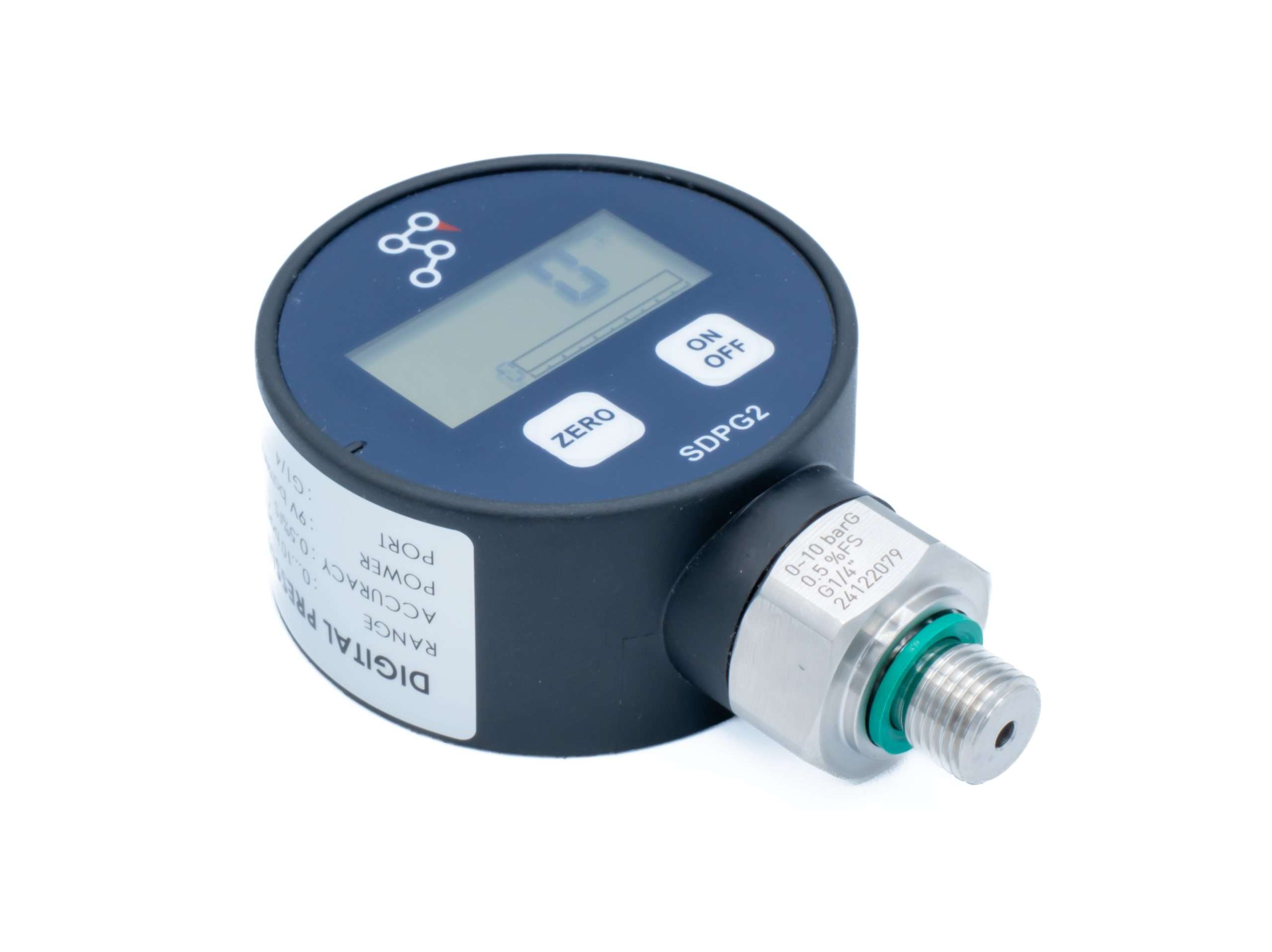

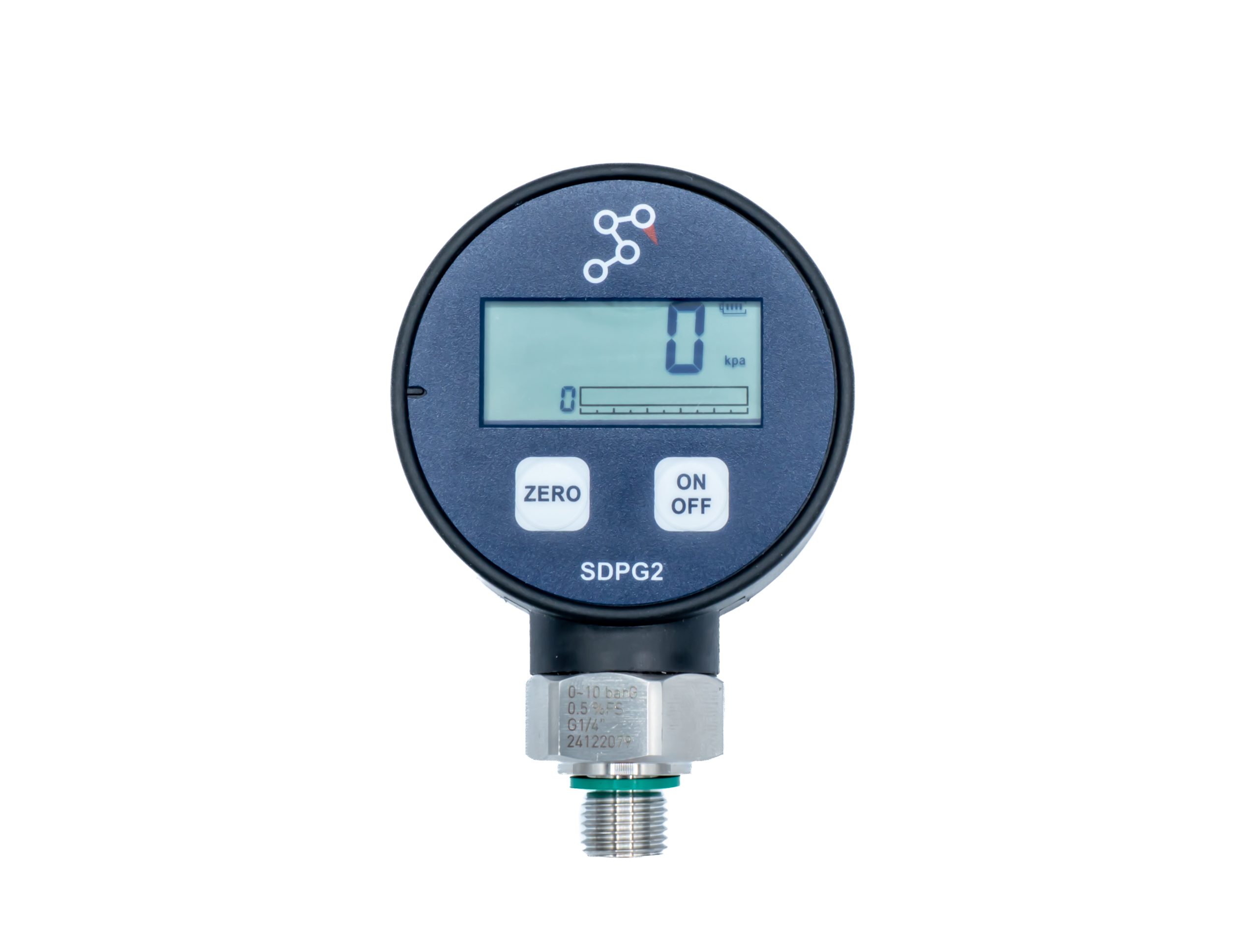

SDPG 500 Digital Pressure Gauge: Cost Effective Pressure Measurement
The SDPG500 Digital Pressure Gauge represents the perfect balance of precision, durability, and functionality for demanding industrial environments. This professional-grade instrument delivers reliable pressure readings across various applications while withstanding the challenges of industrial settings.
Product Features
- Wide Measuring Range: From -1 … 0 bar to 0 … 400 bar, suitable for diverse pressure applications

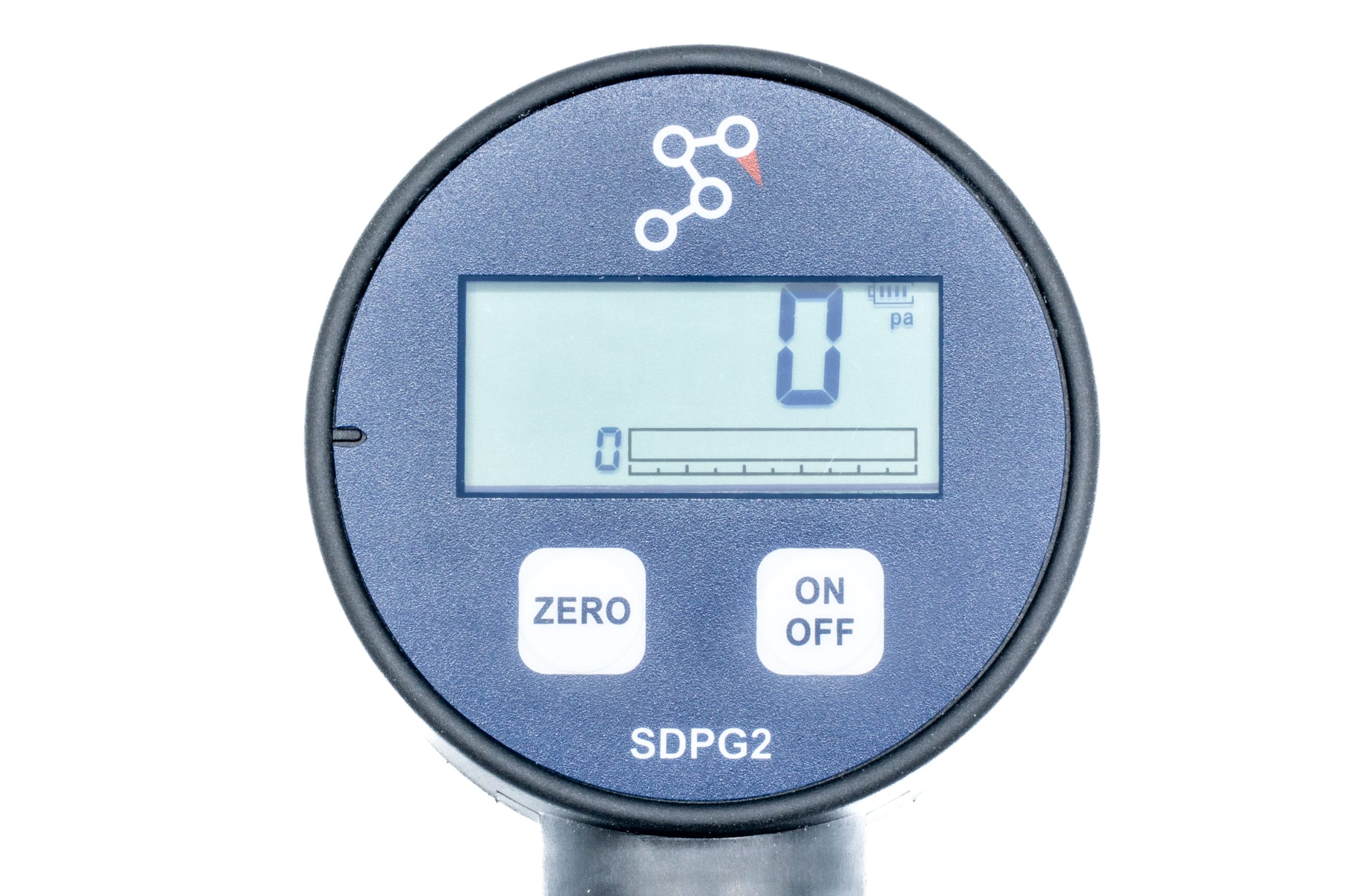

- Superior Readability: Large 4-digit LCD display ensures excellent visibility even in poor lighting conditions
- Versatile Measurement: Supports multiple pressure units including PSI, bar, kPa, MPa, kg/cm² to suit various application requirements
- Exceptional Accuracy: Maintains ±0.5% full scale accuracy across its operating range for dependable measurements
- Robust Construction: Features a stainless steel housing and wetted parts with IP65 protection rating against dust and water ingress

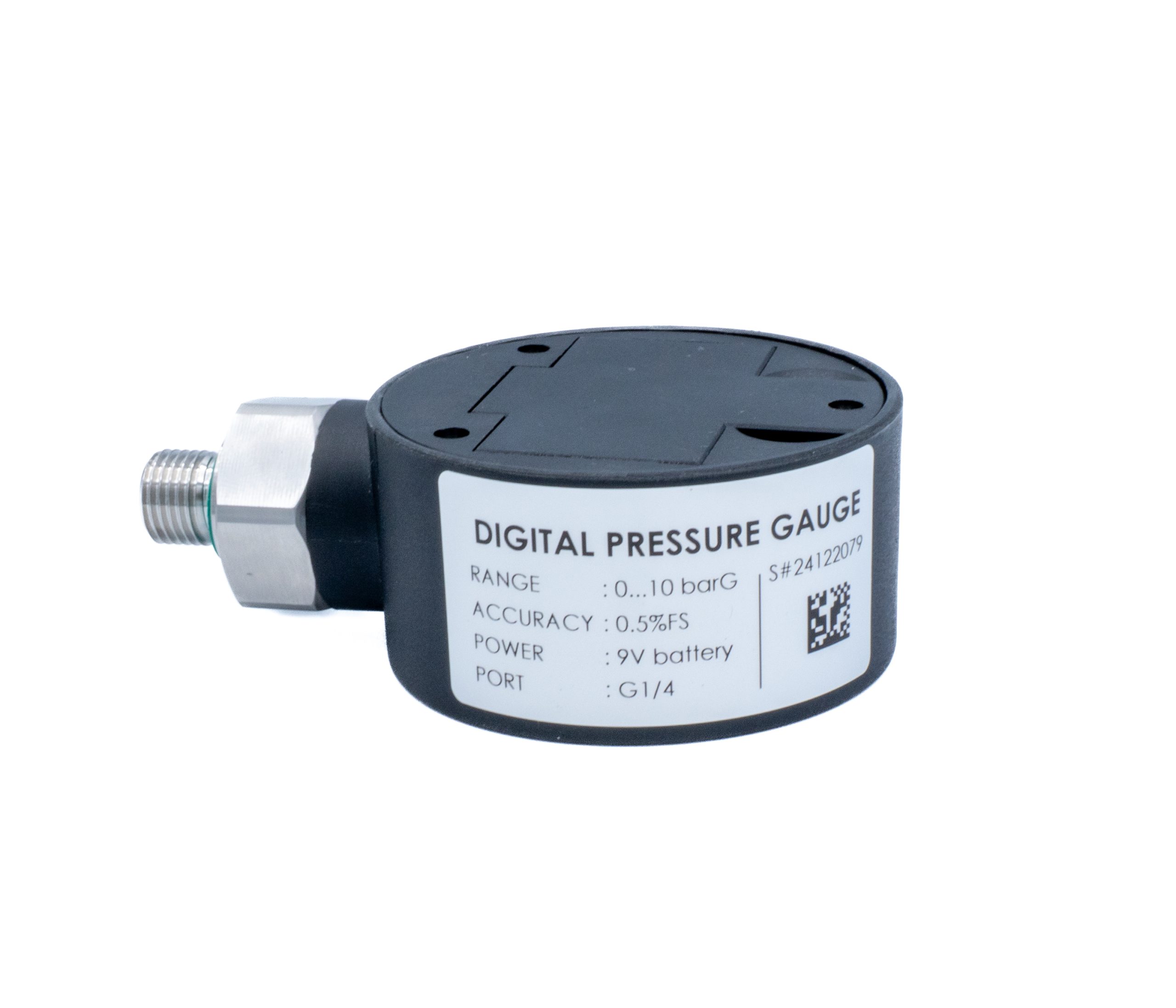

- Battery Efficiency: Operates on standard 9V battery with a useful battery level indicator
- Intelligent Power Management: Auto power-off function to conserve battery life
- Data Capture: Peak pressure recording capability helps track pressure fluctuations and critical values
- User-Friendly Operation: Simple press button interface for intuitive control and easy navigation

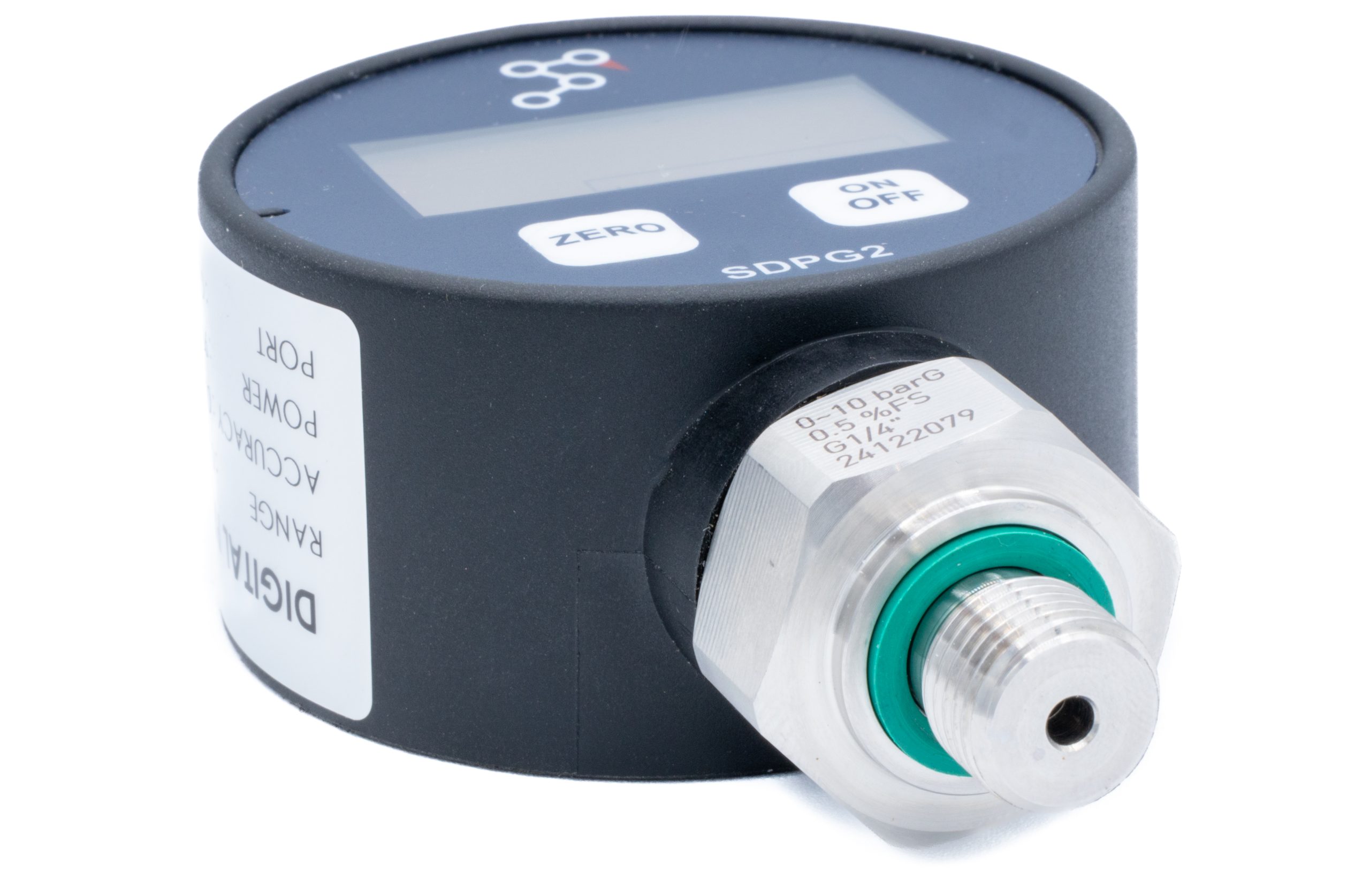

- Process Connection Flexibility: Standard G1/4″ & 1/4″ NPT male bottom connection with additional options available
- Overload Protection: Built-in safeguards against pressure spikes up to 150% of full scale
Why Choose SDPG500?
The SDPG500 is the ideal solution for applications requiring precise pressure monitoring in challenging industrial environments. Its combination of accuracy, durability, and ease of use makes it suitable for manufacturing, hydraulic systems, pneumatic equipment, water treatment facilities, and various process control applications where reliable pressure measurement is critical to operational success.
