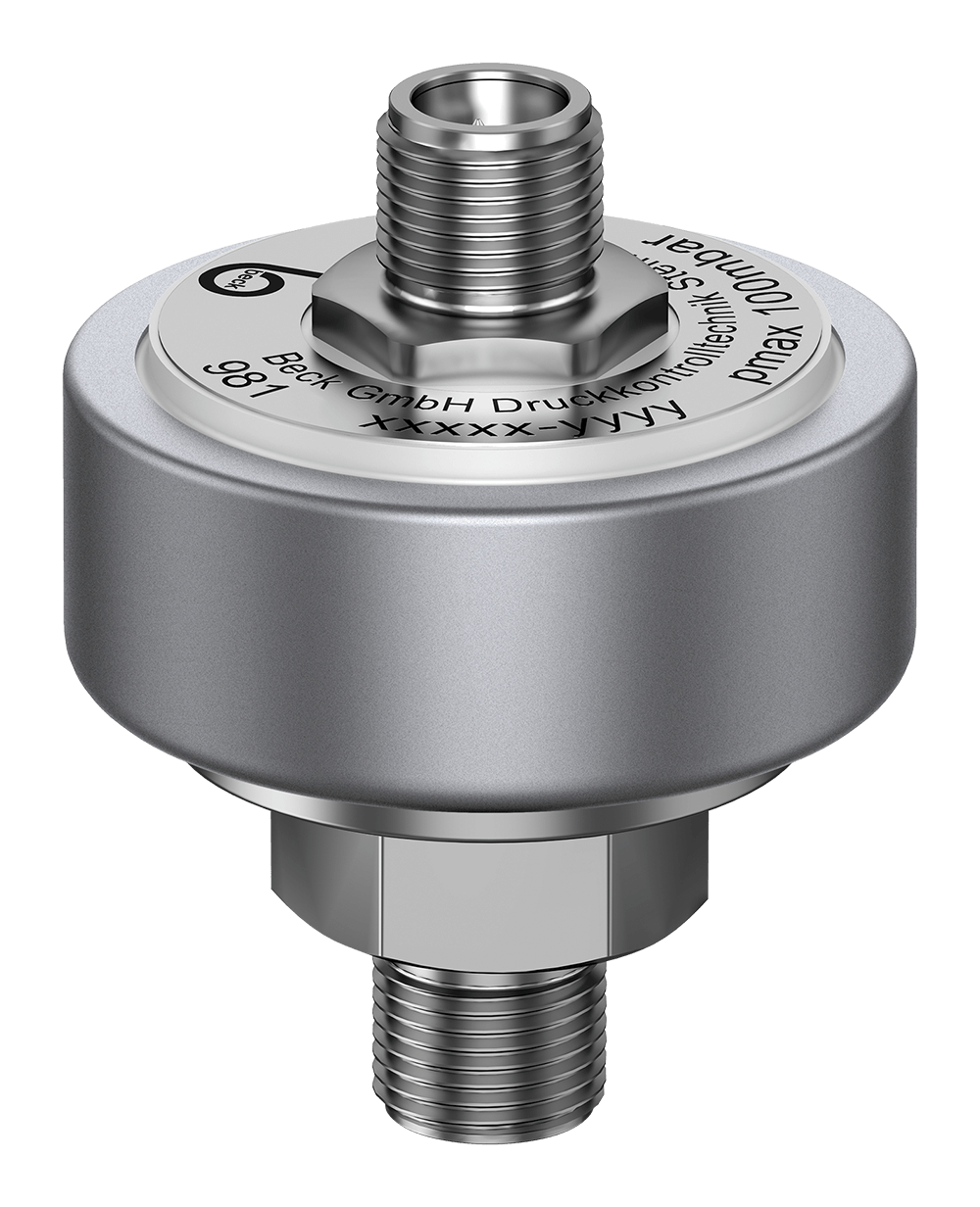

Pressure Transmitter 981

Introducing our cutting-edge Analogue Pressure Transmitter, designed to provide accurate monitoring of overpressure, vacuum, or differential pressure in both liquid and gaseous environments, even with aggressive media. This state-of-the-art device ensures precise pressure measurements relative to atmospheric pressure, guaranteeing reliable and efficient results. With its advanced technology and robust construction, our Analogue Pressure Transmitter is the perfect solution for various industries, from process control to industrial automation. Trust in its exceptional performance and durability to optimise your operations and enhance safety. Experience unparalleled accuracy with our reliable pressure monitoring solution.

Pressure Transmitter 981 Product Parameters

  • Pressure Ranges: Adjustable, with other pressure ranges available upon request.
  • Output Signal: 4 – 20 mA for 2-wire systems and 0 – 10 VDC for 3-wire systems.
  • Accuracy: Conforms to EN 60770 with reference temperature at 23 °C.
  • Electrical Connections: M12 socket, 4 poles, A-coded.
  • Media Compatibility: Suitable for liquid and gaseous, including aggressive media, with media temperature ranging from 0 to 85°C.
  • Special Features: Offers a response time of 500 ms, a mounting position that can be in any orientation, and a protection class of IP65 according to EN 60529.

Product Highlights

The Pressure Transmitter 981 is a versatile device designed to measure pressure in various applications. It operates in a temperature range of -20°C to +85°C, with storage temperature up to +85°C, depending on pressure connection and diaphragm materials. The transmitter offers a 4-20 mA 2-wire and a 0-10 VDC 3-wire output signal, and it operates with a supply voltage of 10 to 30 VDC for the 4-20 mA signal and 18 to 30 VDC for the 0-10 VDC signal. The electrical connection is facilitated through an AMP connection M12 4-pole, and it has an IP54 protection class, ensuring resistance to dust and water according to EN 60529 standards. The Pressure Transmitter 981 covers various pressure ranges from +/- 100 mbar to 0-600 mbar, and it offers diaphragm materials like NBR, EPDM, Silicone, FKM/FPM, and pressure connection materials such as PA, PVDF, PPS, Brass, and Stainless Steel, ensuring flexibility and compatibility in different applications.

Applications

  • Level monitoring
To download the latest datasheet click here: Pressure Transmitter 981
