Rotary Position Sensor Applications
The throttle position application of the Titan Moto TMS 22 is crucial for modern engine management systems. By accurately measuring the position of the throttle, the sensor enables precise control of the air-fuel mixture entering the engine. This not only improves engine efficiency and performance but also helps reduce emissions. The robust design of the TMS 22 ensures reliable operation even in harsh automotive environments, making it ideal for continuous monitoring of throttle movement.
In drive by wire controls, the Titan Moto TMS 22 plays a vital role by replacing traditional mechanical linkages with electronic sensors and actuators. This application allows for smoother and more responsive vehicle control, as the sensor provides real-time feedback on pedal or lever positions. The high accuracy and durability of the TMS 22 make it well-suited for these safety-critical systems, ensuring consistent performance over the vehicle’s lifetime.
The brake pedal position application leverages the TMS 22’s precision to monitor the exact position of the brake pedal. This information is essential for advanced braking systems, such as electronic stability control and anti-lock braking systems (ABS). By providing immediate feedback on pedal movement, the sensor helps optimize braking response and enhances overall vehicle safety.
For steering angle measurement, the Titan Moto TMS 22 offers reliable and accurate feedback on the position of the steering wheel or column. This data is fundamental for modern driver assistance systems, including lane-keeping assist and electronic power steering. The sensor’s robust construction ensures it can withstand the vibrations and stresses typical of steering assemblies, maintaining accuracy throughout its service life.
Finally, in actuator position applications, the TMS 22 is used to monitor the position of various actuators within the vehicle, such as those controlling valves, flaps, or other moving components. Accurate actuator position feedback is essential for the precise operation of automated systems, contributing to improved efficiency, reduced wear, and enhanced system reliability.
Key Features Of The Titan-Moto TMS-22 Series Rotary Position Sensor
Advanced Hall Effect Sensing For High Accuracy
The TMS-22 Series uses proven Hall Effect technology to deliver precise and repeatable rotary position measurements, ensuring reliable feedback for control and monitoring systems.Wide Measurement Range And Customization
Measurement angles are available from 20 degrees up to 360 degrees, with both standard and custom ranges selectable to suit specific application requirements.Rugged Construction For Extreme Environments
Designed to withstand temperatures from minus 40 to 150 degrees Celsius and high levels of vibration and shock, the TMS-22 Series is ideal for motorsport, automotive, and industrial environments.Flexible Mounting And Shaft Options
The modular design offers multiple mounting flange and shaft interface options, including D type, F type, and B type shafts, to ensure compatibility with a variety of mechanical setups.Single And Dual Output Configurations
Available with single or dual electrical outputs, each independently configurable, the sensor supports safety-critical applications and advanced data logging.Lightweight And Compact Design
The sensor’s miniature form factor and industry-standard size make it easy to install in space-constrained environments without sacrificing performance.Custom Engineering Support
Stork Solutions provides expert support for custom output signals, cable lengths, and unique measurement angles, ensuring the sensor meets specialized project needs.

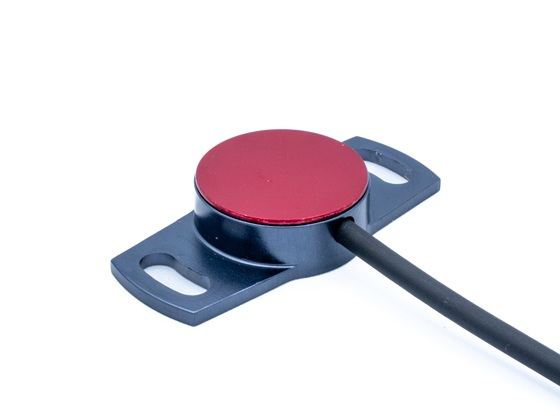

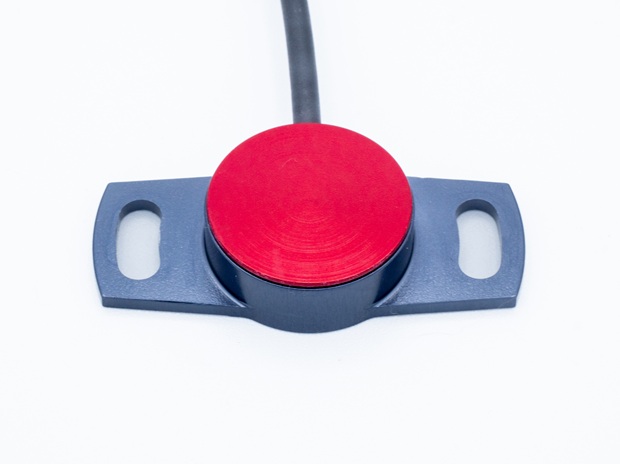

Technical Specifications TMS-22 Series Automotive Rotary Position Sensor
| Parameter | Titan-Moto TMS-22 Series Specification |
|---|---|
| Sensing Technology | Hall Effect |
| Measurement Range | 20° to 360° (standard and custom angles available) |
| Output Options | Single or dual channel, CW or CCW, 0.5–4.5V, 4.5–0.5V, 10–90% Vs, PWM (on request) |
| Operating Temperature | -40°C to +150°C |
| Vibration Resistance | Designed for sustained vibration and shock |
| Mounting Flange Options | S type (38mm PCD), C type (32mm PCD) |
| Shaft Interface Options | D type, F type (split spring), B type (flat blade) |
| Electrical Connections | 3-wire (single), 6-wire (dual), 4-wire (dual common supply) |
| Cable Lengths | Customizable (e.g., L1000 = 1000mm) |
| Resolution | Up to 14 bit (option) |
| Housing | Miniature, rugged construction |
| Weight | Lightweight design |
| Customization | Output range, cable length, independent channel angles, offset phase shift available on request |
