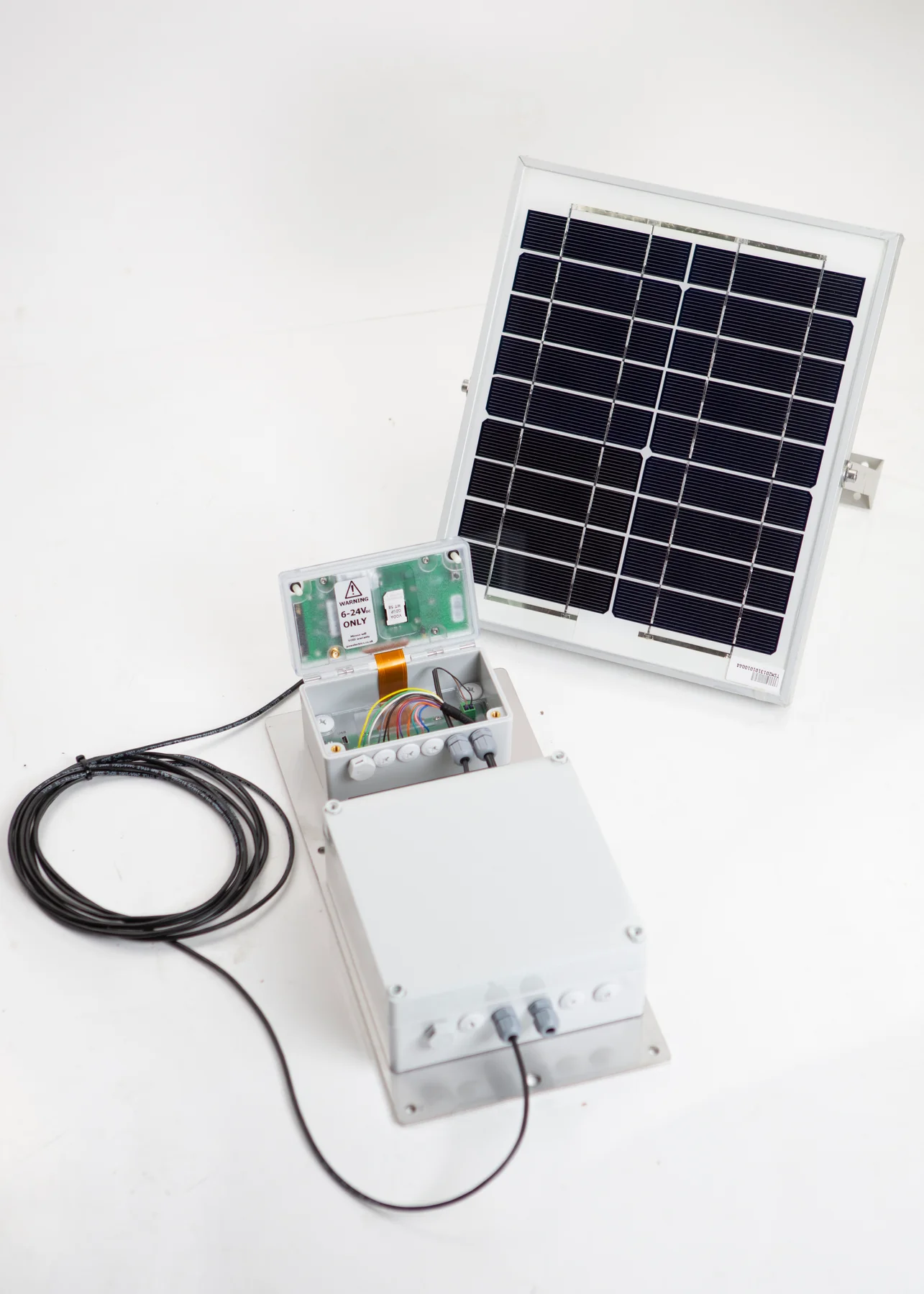

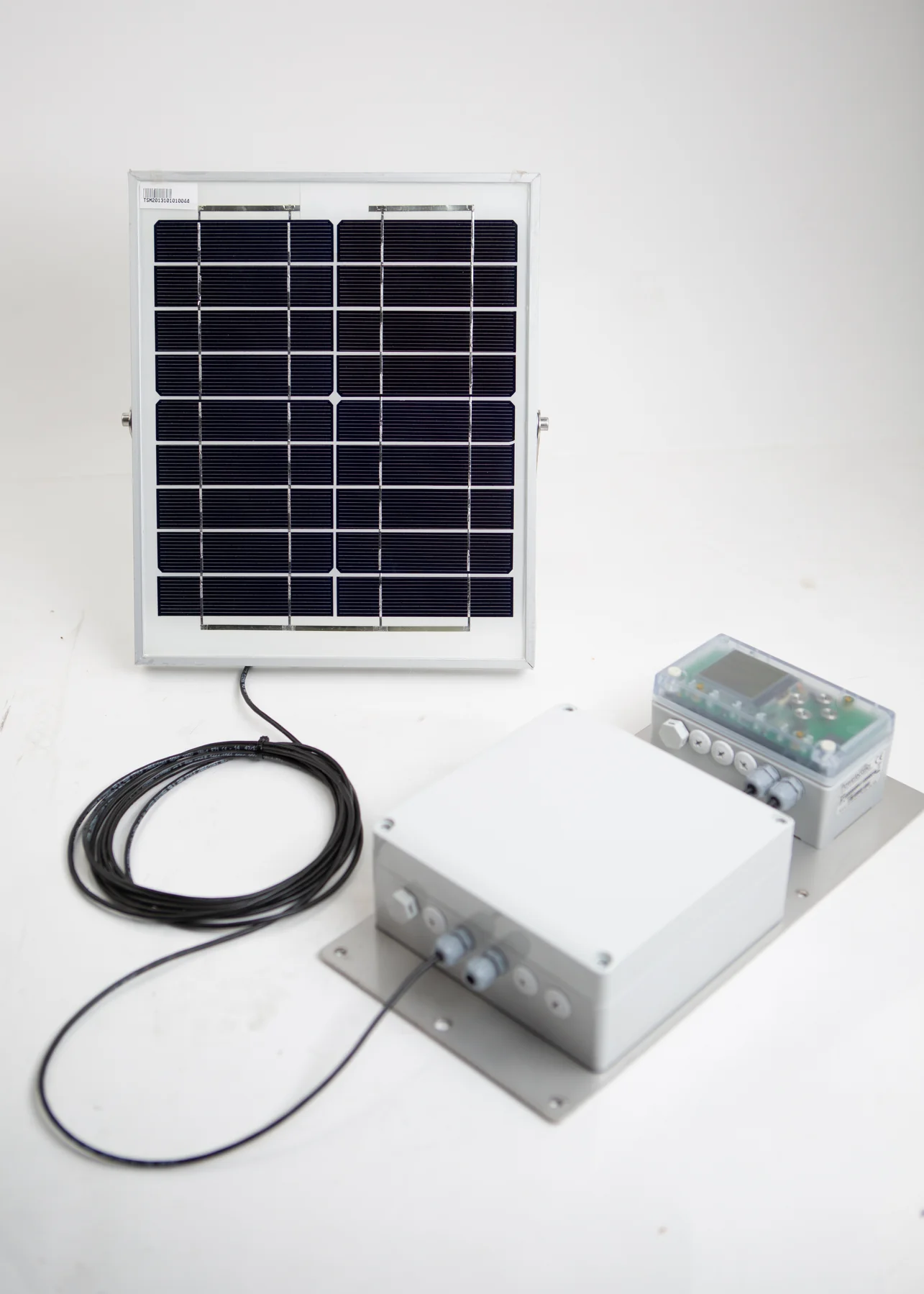

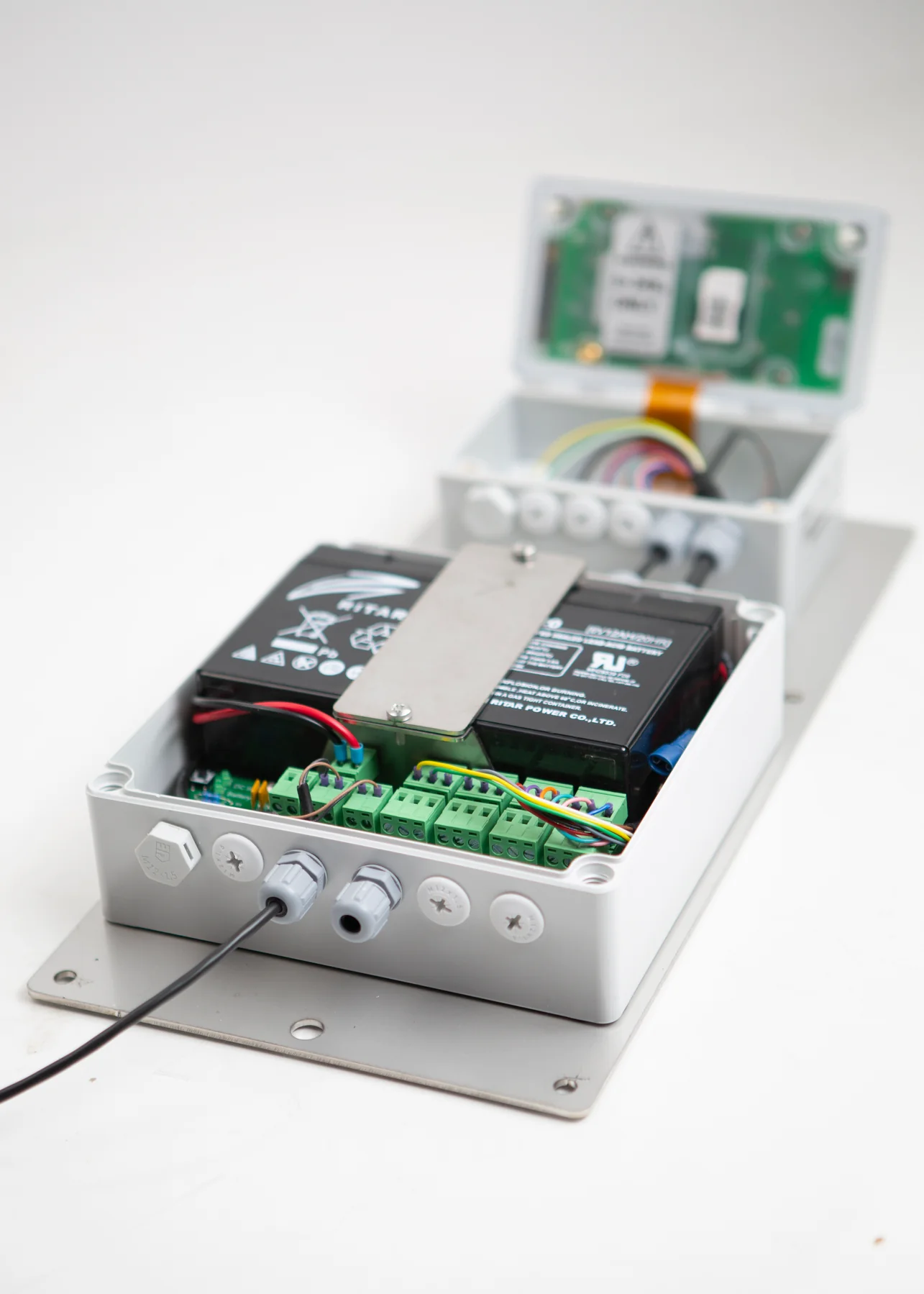

ECHO4 Remote Monitoring System (RMS) is designed to make, what is considered to be a complicated task, of interfacing and reading sensors, logging the results, transmitting to the cloud, a simple and affordable option for any user. All whilst in still covering installations in remote locations and with limited power options. With our options of telemetry and power capabilities, we can ensure your data is always reliable and accurate!
The ECHO4 has 4 x analogue inputs from current and voltage sensors such as 4-20mA & 0-10V and the possibility of installing an expansion card for 5 x pulse inputs. We can also accept inputs digitally from RS232 and RS485 devices using the digital expansion card.
Data is sent to the ‘ECHOVIEW’ cloud platform based on your required wake up and interval timings where you can view the readings for analysing, graphing, exporting and reporting. ‘ECHOVIEW’ also offers the capability to program the input channels and system settings, timings, alarm thresholds and type of notifications and much more.
Product Highlights:
- 4 x analogue inputs, 5 x pulse inputs
- Digital RS232 and RS485 serial interface
- 2 x relay outputs for alarming or control
- Compatible with 1000’s of sensor types
- Remotely Programmable

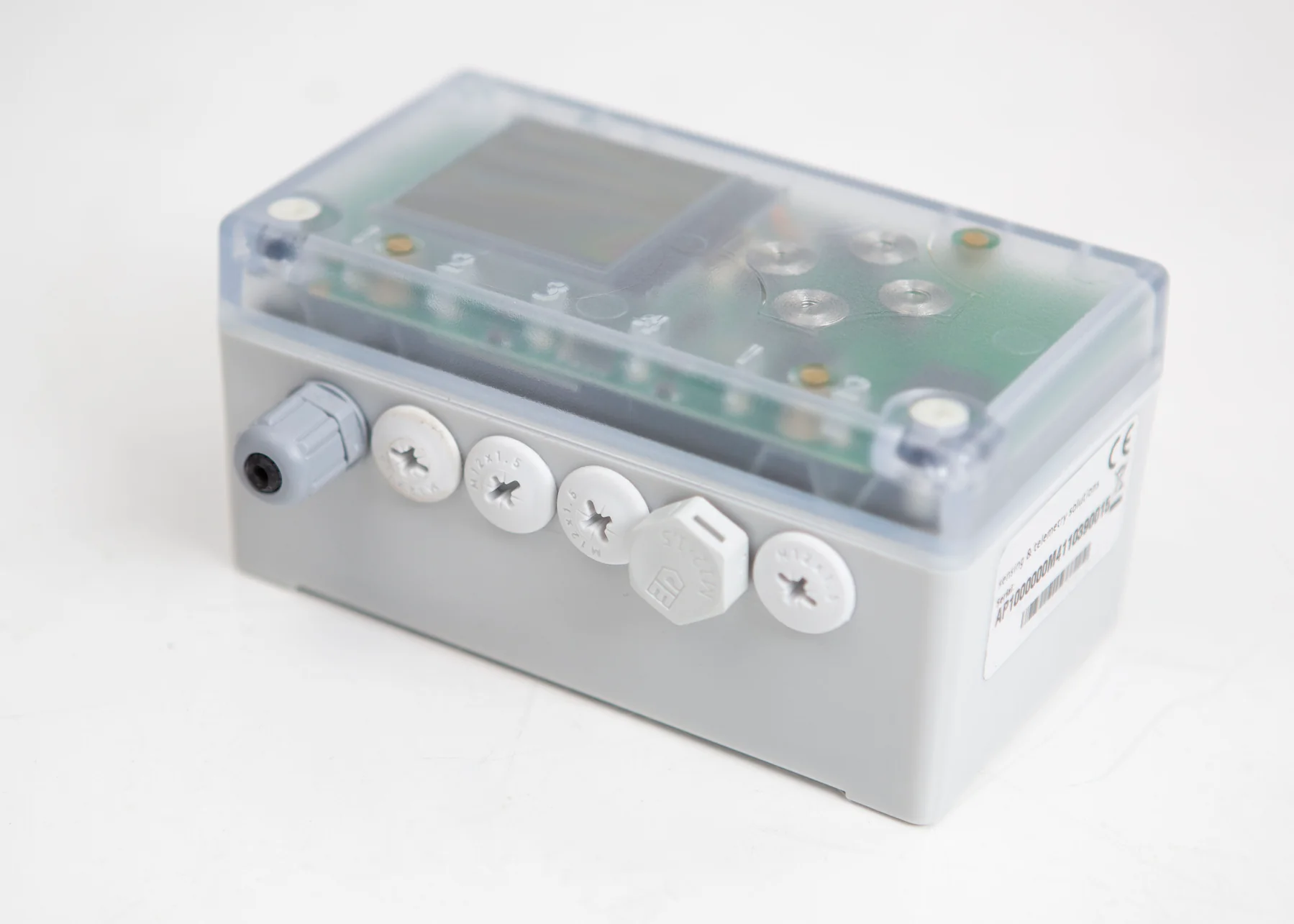

- IP67, self contained enclosure
Applications include, but not limited to:
The ECHO4 Remote Monitoring System is designed for remote condition monitoring, allowing users to keep track of critical equipment and infrastructure from any location. By continuously collecting and transmitting data on operational status, temperature, vibration, and other key parameters, the system helps organizations detect issues early, reduce downtime, and optimize maintenance schedules. This proactive approach ensures that assets remain in optimal condition and that potential failures are addressed before they escalate.
Another important application is remote tank/IBC/tote level monitoring. The ECHO4 system can be deployed to monitor the levels of liquids or materials in tanks, intermediate bulk containers (IBCs), and totes. By providing real-time data on inventory levels, the system enables efficient supply chain management, timely refilling, and prevention of overflows or shortages. This is especially valuable in industries where precise inventory control is essential for operational efficiency and safety.
The system also excels in pumping station monitoring and control. With ECHO4, operators can remotely monitor the performance of pumps, detect anomalies such as pressure drops or flow interruptions, and even control pump operations from a distance. This capability is crucial for water treatment plants, wastewater facilities, and industrial sites, as it ensures reliable operation, reduces the need for on-site personnel, and allows for rapid response to any issues.
Security detection and alarming is another key application of the ECHO4 system. It can be integrated with sensors and alarms to detect unauthorized access, motion, or other security breaches at remote sites. When a security event is detected, the system can instantly alert personnel, trigger alarms, and even activate cameras or lighting. This enhances the safety and security of critical infrastructure, especially in isolated or unmanned locations.
In the realm of utility, water and power applications, the ECHO4 system provides comprehensive monitoring of water distribution networks, power substations, and other utility assets. By delivering real-time insights into flow rates, pressures, voltages, and other operational metrics, the system helps utility providers maintain service reliability, quickly identify faults, and comply with regulatory requirements.
Finally, farming and agriculture monitoring is a significant application area for the ECHO4 system. It enables farmers and agricultural businesses to remotely monitor soil moisture, weather conditions, irrigation systems, and livestock environments. This data-driven approach supports precision agriculture, optimizes resource usage, and improves crop yields while reducing labor and operational costs.
Specification:
ECHOVIEW Cloud Platform:
- Data can be accessed view the hosted ECHOVIEW web based platform
- Available on any web browser connected to the internet
- The platform receives data from ECHO4 devices which are ported to your platform
- Remote configuration of the ECHO4 device via the portal
- Alarms can be set via the portal or email
- Data can be pulled API
- Safe and secure platform for your data
Dimensional Drawings:
Part Numbering:
External Antenna with installation kit, part number: 8D4272/M2:
Data Plans for ECHO4:
Annual Subscription, Part Number: DATA-PLATFORM1
Annual subscription – transmissions every 60 minutes. Recurs annually until cancellation is requested. Multi-network sim card to give best possible coverage even in rural locations. Secure web based data access – see your sensor readings on your computer, tablet or smartphone using your favourite browser. Includes email alarms when thresholds are breached or if no communications from a device (please tell us your requirements). Data accessible via API (fair use policy).
Annual Subscription, Part Number: DATA-PLATFORM2
Annual subscription – transmissions every 10 minutes. Recurs annually until cancellation is requested. Multi-network sim card to give best possible coverage even in rural locations. Secure web based data access – see your sensor readings on your computer, tablet or smartphone using your favourite browser. Includes email alarms when thresholds are breached or if no communications from a device (please tell us your requirements). Data accessible via API (fair use policy).
Annual Subscription, Part Number: DATA-PLATFORM3
Annual subscription – transmissions every 5 minutes. Recurs annually until cancellation is requested. Multi-network sim card to give best possible coverage even in rural locations. Secure web based data access – see your sensor readings on your computer, tablet or smartphone using your favourite browser. Includes email alarms when thresholds are breached or if no communications from a device (please tell us your requirements). Data accessible via API (fair use policy).
