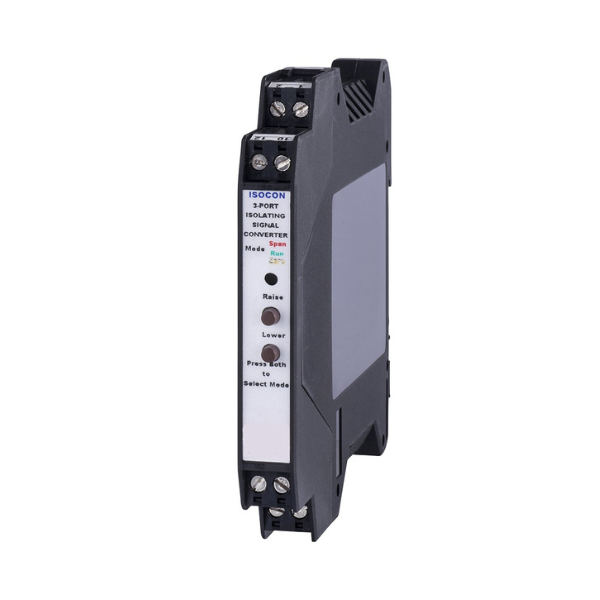

Stork Isocon-6 Signal Converter with Isolation
The Stork Isocon-6 is a universal input and output signal converter and isolator designed to accept a wide range of process signals and deliver an isolated 4-20mA current or voltage output. With full 3-port isolation, wide power supply options, and simple DIP Switch configuration, Isocon-6 is ideal for flexible signal conditioning on a slim DIN rail footprint.
Key benefits
- Universal input and output signal conversion for common process signals
- Full 3-port isolation to help protect equipment and reduce interference and ground loop problems
- Wide power supply options: 12-36 Vac or 12-32 Vac
- Isolated transmitter supply support
- No PC software required for setup (DIP switch configurable)
- Only 12.5 mm wide on DIN rail for high density panels
Product overview
The Isocon-6 signal isolator can accept almost any process input and provide an isolated 4-20mA current or voltage output. Supported input types include 4-20mA, voltage, thermocouples, RTD’s, and potentiometers making it a versatile choice for instrumentation upgrades, system integration, and control panel builds.
Input and output selection is configured using onboard DIP switches. For field adjustment, non-interactive zero and span buttons make it easy to fine-tune performance without needing specialist tools. Configuration software is also available to determine the correct switch settings for specific input and output combinations.
Beyond straightforward isolation and conversion, Isocon-6 can also support signal inversion and square root extraction, helping meet common processing needs without extra hardware.
Features List
- Universal signal converter and isolator designed for process measurement.
- Supports a variety of inputs including 4–20 mA, voltage, thermocouples, RTDs, and potentiometers.
- Provides isolated 4–20 mA or voltage outputs for system compatibility.
- Features full 3-port isolation to ensure signal integrity and safety.
- Operates on a power supply range of 12–36 Vdc or 12–32 Vac.
- Slim DIN rail mounting with a compact 12.5 mm width to save cabinet space.
- DIP switch configuration complemented by non-interactive zero and span buttons.
- Optional configuration software is available to provide guidance for switch settings.
- Includes additional functions such as signal inversion and square root extraction.
