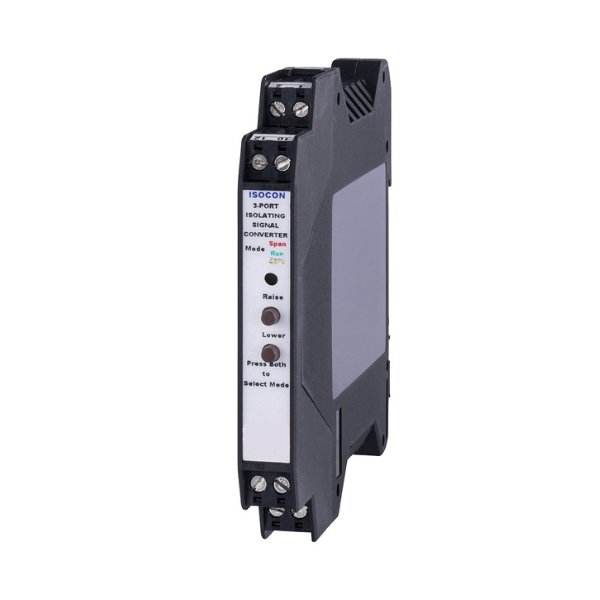

Stork Isocon-3 Isolating Signal Converter
The Stork Isocon-3 is a universal input and output signal converter with full 3-port isolation, designed to accept a wide range of process signals and provide an isolated 4–20 mA current or 0–10 V voltage output. With a 90–230 Vac power supply and slim 12.5 mm DIN rail form factor, it is a strong choice for control panels that need flexible signal conditioning from a mains supply.
Key benefits
- Universal input and output signal conversion for common process signals
- Full 3-port isolation to improve protection and reduce noise and ground loop issues
- Mains powered: 90-230 Vac supply
- Isolated transmitter supply
- No PC software required for configuration
- Only 12.5 mm wide on DIN rail for space saving installations
Product overview
The Isocon-3 signal isolator can accept almost any process input and provide an isolated 4–20 mA current or 0–10 V voltage output. Input types include 4–20 mA, voltage, thermocouples, RTDs, and potentiometers, making it suitable for a broad range of instrumentation and interface applications.
Configuration is straightforward using onboard DIP switches, and non-interactive zero and span buttons allow simple field adjustment for final trimming and commissioning.
In addition to isolation and conversion, Isocon-3 can also provide signal inversion and square root extraction, helping meet common process requirements without additional modules.
Features List
- Universal signal converter and isolator designed for process measurement and industrial automation.
- Supports a wide range of inputs including 4–20 mA, voltage, thermocouples, RTDs, and potentiometers.
- Provides isolated 4–20 mA or 0–10 V outputs for reliable signal retransmission.
- Features full 3-port isolation to ensure electrical safety and signal integrity.
- Mains powered with a 90–230 Vac supply range.
- Slim DIN rail mounting with a compact 12.5 mm width to save space in control panels.
- Simple DIP switch configuration complemented by non-interactive zero and span buttons.
- Includes additional built in functions such as signal inversion and square root extraction.
