Limitless connectivity
The new T8990 equipment includes ports for the USB slave, RS232, RS485, Profinet, EtherNet IP and EtherCAT. Assembly may also include an optional Ethernet port and a 26-pole connector with 4 inputs and 8 outputs, which are completely programmable, for interfacing with the external valves, safety barriers, switches, etc…
The front panel has a master USB port assembled on it for connection to a USB key to save the tests conducted, backup/restore parameters and upgrade tool firmware.
The connection to thermal printers, barcode/data-matrix readers and markers takes place automatically using an internal menu.
- USB Key
- High Power Outputs
- RS232, RS4845, Ethernet IP
- Ethernet and auxiliary connector

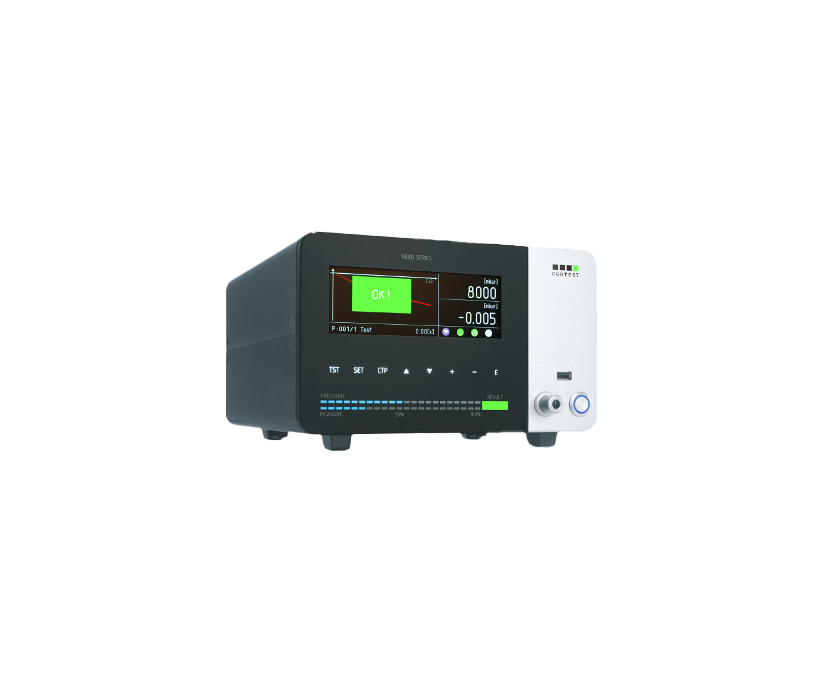

Always better measurements with T8990 Leak Tester
The test cycle was further accelerated thanks to processor and coprocessor interaction, maintaining the reliability that has always made ForTest unique.
We can say with certainty that T8990 avails of the most advanced measurement section in the world, thanks to the centring technology in windows and the double Faraday optical-isolated cage, which reduces the settling times under 18 ms.
This gives a real measurement resolution of 0.1 Pa at 1 bar (0.5 Pa at 6 bar), stable and noise-free.
- Built-in processor and coprocessor
- Centring technology in windows
- Resolution from 0.1 Pa
Optimised pneumatic section
Assembly of the latest generation solenoid valves has enabled a 30% increase in the filling speed compared to the previous model, maintaining reliability unaltered over time. Our tools do not require expensive maintenance in the pneumatic department. Actually, our objective is to make them increasingly reliable and long-lasting.
- Filling speed +30%
- High strength against humidity
- No periodic maintenance
Innovative Leak Test Design
What appears to be a simple design exercise, in fact hides an in-depth study to make use and understanding of the tool as simple as possible.
The front panel is made of a single sheet of tempered glass and aluminium, which makes it extremely easy to clean, making the T8990 suitable for use in the laboratory and on the production line.
The extensive internal menus are easy to understand and the graphic interface was designed to only display important information.
Everything is exactly where it should be.
- User friendly interface
- Easy to clean
- Use in sectors at 360°
