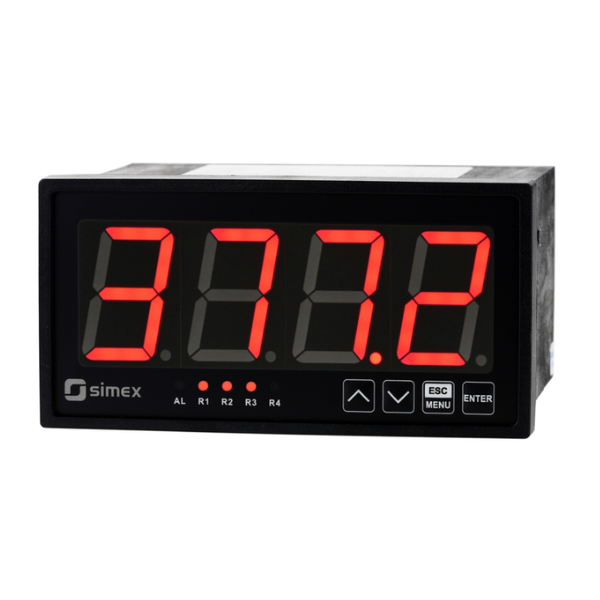

SRP-147 Process Meter with a Large 4 x 38 mm Display

The SRP-147 Meter offers high accuracy for current and voltage signal measurement, featuring a clear 38 mm LED display. Its compatibility with various control systems and a 24V DC / 100 mA output make it ideal for powering transducers. It includes an RS-485 port for data transmission and adjustable REL / OC outputs. Customise with analogue outputs and configure easily via keyboard or S-Config software. The SRP-147 is your go-to for precise control and measurement.

SRP 147 Process Meter Product Parameters

  • Output Signal: Optional 0, 2, or 4x REL; OC outputs; programmable analogue outputs.
  • Accuracy: 0.1% @25°C ± one digit.
  • Electrical Connections: Power supply 19V ÷ 50V DC, 16V ÷ 35V AC, 85 ÷ 260V AC/DC.
  • Process Connections: Inputs for current (0-20 mA or 4-20 mA) and voltage (0-10V).
  • Media Compatibility: Operating temp. 0°C to +50°C, storage temp. -10°C to +70°C.
  • Special Features: LED display, RS-485 interface, IP 65/20 protection, panel mounting.

Product Highlights

The SRP147 Process Meter is a versatile device specifically designed for measuring typical current or voltage signals. One of its key features is the large LED display, standing at an impressive 38 mm in height. This ensures easy visibility and readability of measurements. The meter offers a wide range of characteristic curves, including linear, square root, quadratic, user-defined, and volume characteristic for cylindrical tanks. This flexibility allows for its utilisation in various process control systems. Additionally, the meter is equipped with a 24V DC / 100 mA output, specifically designed to power measuring transducers. The RS-485 port enables seamless data transmission in production process monitoring systems. The REL / OC control outputs are capable of adjusting the signal level based on one or two threshold values. For added convenience, the meter can be equipped with analogue outputs, offering options such as active current output, passive isolated current output, or active voltage output, tailored to the customer’s requirements. Configuration of the meter can be done locally using the keyboard or through the use of the free S-Config software, utilising the RS-485 communication port.

Features

  • Process meter with a large 4 x 38 mm display
  • Inputs: 0/4-20 mA, 0/1-5V, 0/2-10V, 0-60/75/100/150 mV
  • 0, 2 or 4 REL / OC outputs
  • Analogue output: active or passive, power supply output: 24V DC
  • RS-485 / Modbus RTU
  • Signal peak value detection
  • Free configuration software S-Config

To download the latest datasheet click here: SRP 147
