Bioreactor Pressure Monitoring
Bioreactors are at the heart of modern pharmaceutical manufacturing. From mammalian cell culture and microbial fermentation through to monoclonal antibody production, vaccine manufacture, and gene therapy vector generation, every bioprocess depends on precisely controlled headspace pressure to maintain optimal dissolved gas concentrations, prevent contamination ingress, and ensure consistent cell growth and product yield. Too much pressure risks cell damage and foaming; too little allows atmospheric contaminants into the sterile vessel. In both cases, the batch is compromised and potentially lost.
Accurate, hygienic, and digitally connected pressure instrumentation is essential for every GMP-regulated bioreactor installation. Pressure transmitters monitor vessel headspace pressure and sparger line delivery; differential pressure instruments verify exhaust filter integrity and detect blockages; electronic pressure switches provide overpressure safety interlocks; dual-output transmitters deliver simultaneous pressure and temperature data from a single process penetration; PID controllers regulate jacket heating and cooling phases; and multichannel data loggers capture the time-stamped batch evidence that quality assurance teams, regulatory auditors, and validation engineers require.
At Stork Solutions, we supply a comprehensive range of hygienic flush-diaphragm pressure transmitters, ceramic sensor transmitters, electronic pressure switches, dual-output pressure and temperature transmitters, PID controllers, and multichannel data loggers purpose-designed for the sterile, chemically aggressive, and GMP-regulated environments found in pharmaceutical bioreactor suites of every scale, from benchtop R&D through pilot plant to full commercial manufacture.
Product Spotlight for Bottling Line Pressure Regulation
Why Specialist Instrumentation Is Needed for Bioreactor Pressure Monitoring
Pharmaceutical bioreactor environments subject instruments to a uniquely demanding combination of conditions that general-purpose sensors cannot reliably survive:
Sterile process boundary – every instrument penetrating the bioreactor vessel wall must present a completely flush, dead-space-free process connection to prevent harbourage of microorganisms and ensure sterility assurance throughout the batch
Aggressive SIP and CIP cycles – bioreactors are routinely sterilised in place with clean steam at 121-134 degrees C and cleaned with hot caustic soda, phosphoric acid, and peracetic acid between campaigns, demanding instruments with CIP/SIP temperature ratings to 150 degrees C and chemically resistant wetted materials
Rapid thermal cycling – repeated transitions between SIP steam temperatures and ambient impose severe thermal shock on sensor diaphragms and housings, requiring proven long-term stability
Low-pressure precision – bioreactor headspace pressure is typically controlled between 0.1 and 0.5 bar gauge; instruments must deliver high accuracy at the bottom end of their range to maintain the tight tolerances that sensitive cell cultures demand
Dissolved gas management – headspace pressure directly influences dissolved oxygen (DO) and dissolved CO2 concentrations in the culture medium; measurement drift or lag can compromise critical process parameters (CPPs) and batch quality
GMP documentation and electronic batch records – 21 CFR Part 11 and EU Annex 11 require traceable, time-stamped measurement data; digital communication protocols (HART, IO-Link, RS485 Modbus) support automated batch record integration with DCS, SCADA, and MES systems
Multi-vessel scale-up – modern bioreactor suites may contain dozens of vessels at different scales running simultaneous campaigns, requiring consistent, scalable instrumentation with centralised data collection and device management
Hazardous atmosphere potential – some bioprocesses generate flammable gases or use solvents that require ATEX/IECEx-certified instruments in classified zones
Hygienic process connections – Tri-Clamp, DIN 11851, Varivent, dairy pipe, and Clamp fittings are standard across pharmaceutical bioreactor pipework and vessels
Purpose-designed hygienic instruments with flush diaphragms, CIP/SIP-rated materials, appropriate certifications, and digital communication protocols ensure that every bioreactor batch is measured, controlled, and documented to the standards that GMP-regulated pharmaceutical facilities demand.
Hygienic Flush-Diaphragm Pressure Transmitters - CIP/SIP Rated
The primary pressure measurement across every pharmaceutical bioreactor: monitoring vessel headspace pressure, sparger line pressure, harvest line pressure, and confirming that process lines are pressurised correctly during media transfer. These transmitters feature flush stainless steel diaphragms with no dead space, CIP/SIP cleaning ratings to 150 degrees C, and hygienic process connections.
DMP 331 P Industrial Pressure Transmitter – 100 mbar to 40 bar | Piezoresistive stainless steel sensor | Flush diaphragm with low surface roughness | 4-20 mA / 0-10 V | CIP/SIP cleaning up to 150 degrees C | Vacuum resistant | IS Ex ia | SIL 2 | Optional Hastelloy or Tantalum diaphragm | Cooling element to 300 degrees C | Designed for pharmaceutical manufacturing including mixing, filtration, and filling | The primary hygienic transmitter for bioreactor headspace pressure monitoring, media transfer verification, and sparger line pressure
DMP 331 P i Precision Pressure Transmitter – 400 mbar to 40 bar | 16-bit digital signal processing | Turn-down 1:10 | 0.04% FSO/10K temperature response | CIP/SIP compatible | Communication interface for offset/span/damping | For precision bioreactor headspace control where tighter measurement tolerances are required during critical cell culture phases and scale-up validation
DMP 333P Pressure Transmitter – Flush diaphragm | Cooling element to 200 degrees C | Suited to viscous and pasty media | For pressure monitoring on bioreactor feed lines, media preparation vessels, and harvest lines handling cell-laden broth

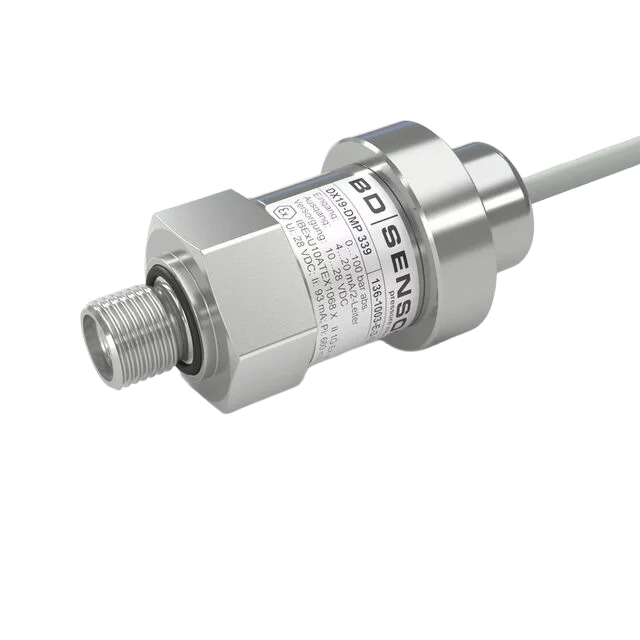

DMP 339P Flush Pressure Transmitter with G1/4 inch port – Compact flush-mount | For tight installation on bioreactor valve manifolds, sample ports, and modular single-use bioreactor skids where space is limited
IO-Link Smart Transmitters for Digital Bioreactor Management
Modern pharmaceutical facilities adopting Industry 4.0 and Pharma 4.0 strategies benefit from IO-Link’s digital diagnostics, automated parameterisation, device identification, and predictive maintenance. These capabilities enable faster commissioning of new bioreactor vessels, centralised device management across multi-vessel suites, and automated electronic batch record integration with DCS and MES platforms.

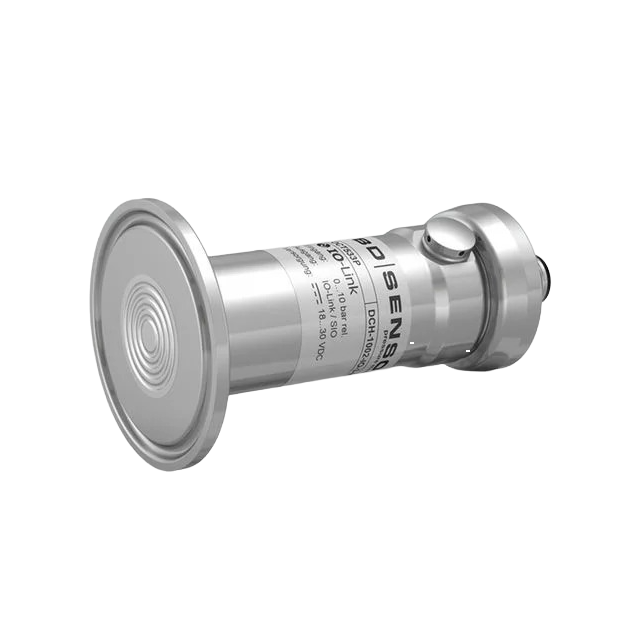

DCT 533 P Industrial Pressure Transmitter with IO-Link – 100 mbar to 40 bar | IO-Link V1.1 | CIP/SIP cleaning up to 150 degrees C | Flush hygienic pressure port | Low surface roughness diaphragm | IP 67/IP 69 | Shock and vibration resistant | Cooling element to 300 degrees C | Designed for pharmaceutical bioreactor, filtration skid, and filling line environments | The flagship IO-Link transmitter for digitally connected bioreactor pressure monitoring with smart device management

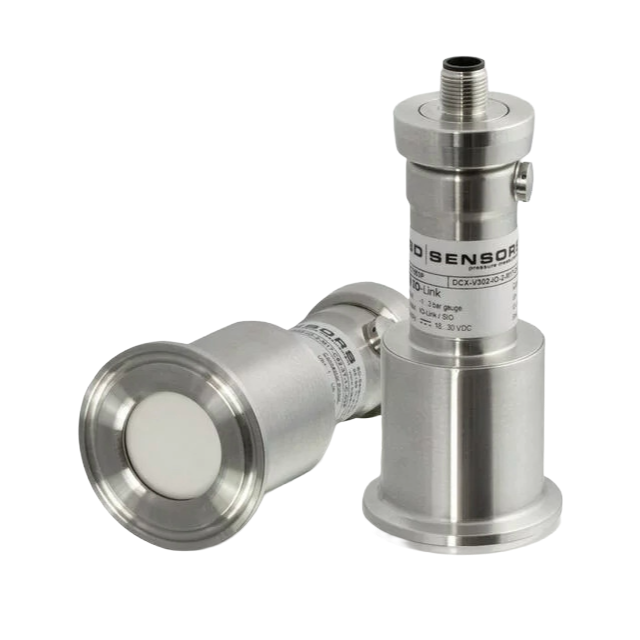

DCT 553 P Industrial Pressure Transmitter with IO-Link – Capacitive ceramic sensor (99.9% Al2O3) | 40 mbar to 20 bar | IO-Link V1.1 | Dead-space-free | High overpressure capability | Prevents condensation during temperature fluctuations | For bioreactor environments where ceramic chemical resistance eliminates oil-fill contamination risk during aggressive acid and caustic CIP/SIP cycles

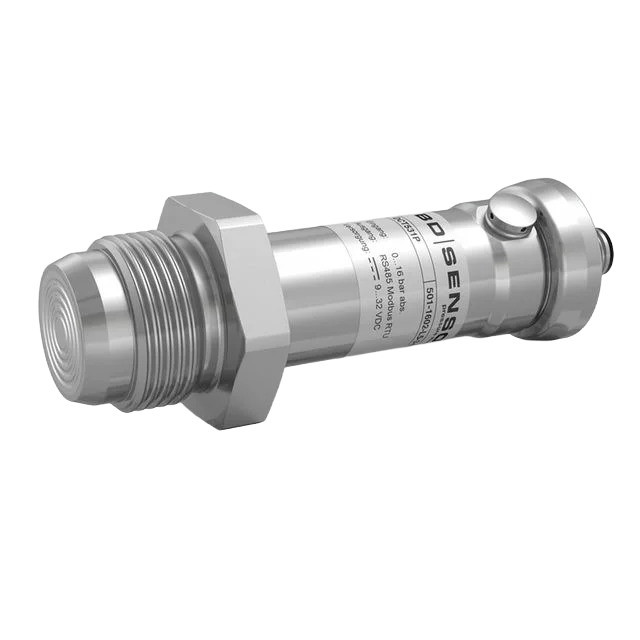

DCT 531 P Industrial Pressure Transmitter with RS485 Modbus RTU – 100 mbar to 40 bar | RS485 Modbus RTU | EHEDG certified | CIP/SIP cleaning up to 150 degrees C | IP 67/IP 69 | Up to 247 devices on a single bus | For multi-drop digital bus architectures where multiple bioreactor transmitters report to a single DCS/SCADA master across large pharmaceutical manufacturing suites
Precision Process Transmitters with HART and SIL 2
For bioreactor systems integrated with safety instrumented functions (SIF), HART-enabled asset management, and precision headspace pressure control where measurement confidence must support regulatory validation:

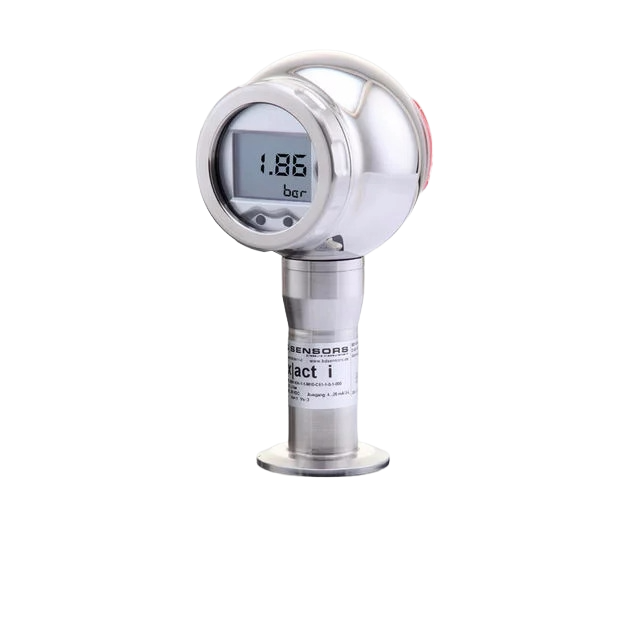

X|act i Precision Pressure Transmitter (SIL 2) – 400 mbar to 40 bar | HART | SIL 2 | Turn-down 1:10 | Flush welded diaphragm | Hygienic connections (Varivent, dairy pipe, Clamp) | ATEX Ex ia | Cooling element to 300 degrees C | Designed for food, pharmaceutical, and biotechnology applications | The premium hygienic transmitter for safety-critical bioreactor pressure management on GMP-validated process lines
X|act ci Precision Pressure Transmitter – Capacitive ceramic sensor (99.9% Al2O3) | 160 mbar to 20 bar | HART option | Flush-mounted | Hygienic connections | ATEX Ex ia option | Designed for pharmaceutical, food/beverage, and biotechnology applications | Ideal for bioreactor headspace monitoring where ceramic chemical resistance eliminates oil-fill contamination risk and provides inherent thermal shock stability during SIP cycles
XMP i Precision Pressure Transmitter with HART and SIL 2 – 400 mbar to 600 bar | HART | SIL 2 | Turn-down 1:10 | For high-pressure bioreactor utility systems including clean steam generators, WFI distribution loops, and compressed gas supply lines
DMP 331i / DMP 333i Precision Pressure Transmitter – 400 mbar to 600 bar | 16-bit digital signal processing | Turn-down 1:10 | Communication interface | For precision bioreactor pressure trending, scale-up comparison analysis, and R&D pilot-plant characterisation
Ceramic Sensor Transmitters for Aggressive CIP/SIP Chemical Resistance
Pharmaceutical CIP/SIP cleaning agents, particularly hot caustic soda, phosphoric acid, peracetic acid, and clean steam at 121-134 degrees C, can attack metallic diaphragm seals and oil-fill fluids over time. Ceramic sensing elements (99.9% Al2O3) provide inherent chemical resistance with no oil-fill contamination risk, making them the preferred choice for bioreactor installations where product purity is paramount:
DMK 351 P Pressure Transmitter for the Process Industry – Capacitive ceramic sensor | 40 mbar to 20 bar | Dead-space-free hygienic connections (G1-1/2 inch, dairy pipe, Clamp) | IS Ex ia | For bioreactor headspace, media preparation vessel, and CIP circuit monitoring where ceramic chemical resistance is essential
DMK 331 Industrial Pressure Transmitter – Capacitive ceramic sensor | 400 mbar to 600 bar | PVDF open port | ATEX Ex ia | SIL 2 | For clean steam system pressure, compressed gas supply monitoring, and aggressive CIP chemical supply tank monitoring
Differential Pressure Transmitters for Exhaust Filter and Cross-Flow Monitoring
Differential pressure measurement within pharmaceutical bioreactor suites monitors exhaust gas filter integrity (hydrophobic vent filters that protect sterility), cross-flow and tangential flow filtration (TFF) membrane condition, and verifies airflow through HEPA-filtered cleanroom environments:

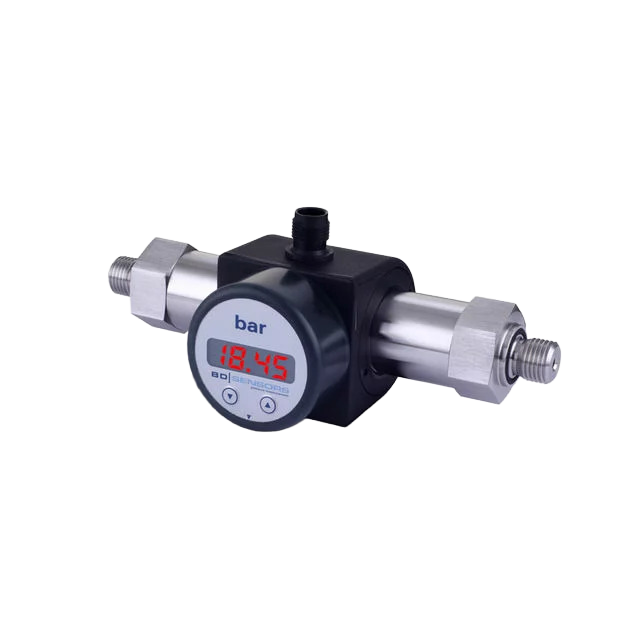

DMD 831 Differential Pressure Transmitter with Display and Contact – 1 bar to 70 bar | Dual piezoresistive stainless steel sensors | 4-digit LED display | PNP alarm contact | For visual delta-P indication on bioreactor exhaust filters with integrated blockage alarm
DMD 331 Differential Pressure Transmitter – 20 mbar to 16 bar | Piezoresistive stainless steel | ATEX Ex ia | 30x static overpressure | For inline TFF membrane delta-P monitoring and bioreactor heat exchanger fouling detection
DPT 200 Differential Pressure Transmitter with HART – 1 mbar to 20 bar | Static pressure to 400 bar | HART | 100:1 rangeability | ATEX Ex ia / Ex d | LC display | For HART-integrated bioreactor suite delta-P monitoring with DCS/SCADA connectivity and automated batch record integration
DPT 100 Differential Pressure Transmitter – 10 mbar to 20 bar | Static pressure to 400 bar | RS485 Modbus RTU | Fast response time (10 ms) | 0.1% FSO accuracy | For fast-response filter integrity monitoring and cleanroom differential pressure verification
Electronic Pressure Switches for Bioreactor Safety and Interlock
Automated alarm switching for bioreactor overpressure protection, vessel integrity interlocks, SIP cycle pressure verification, and sterile boundary protection:

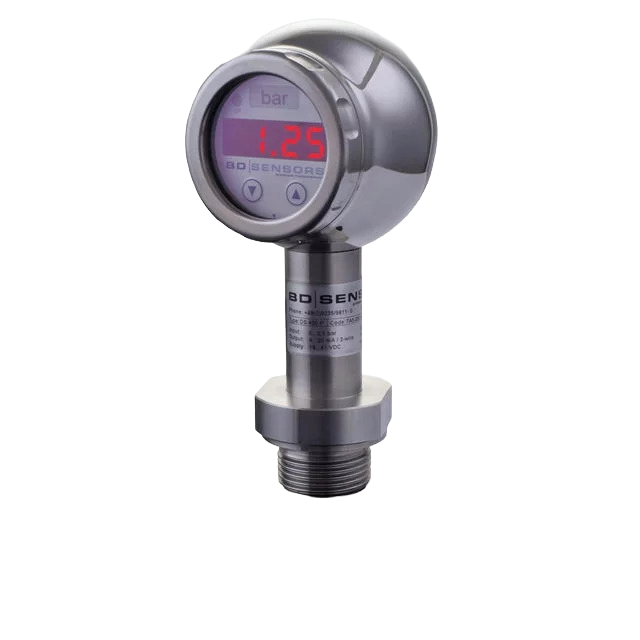

DS 400 P Intelligent Electronic Pressure Switch – 100 mbar to 40 bar | Hygienic stainless steel | 1 or 2 PNP contacts | 4-20 mA analogue output | 4-digit LED display | Rotatable display module | IS Ex ia | CIP/SIP compatible | The primary hygienic pressure switch for bioreactor overpressure alarm and safety interlock management
DS 200 P Electronic Pressure Switch – 100 mbar to 40 bar | 1, 2, or 4 PNP contacts | 4-20 mA / 0-10 V analogue output | 4-digit LED display | IS Ex ia option | CIP/SIP compatible | For multi-contact alarm switching on bioreactor media transfer lines, harvest valves, and utility supply systems
DS 201 P Electronic Pressure Switch – 60-400 bar | Flush stainless steel diaphragm | Cooling element to 300 degrees C | 1, 2, or 4 PNP contacts + analogue output | For high-pressure clean steam generator interlock and SIP steam pressure switching
DS 350 P Electronic Pressure Switch with IO-Link – IO-Link interface | Flush diaphragm | For digitally connected bioreactor alarm switching on IO-Link bus architectures with automated interlock management and phase transition control
Dual-Output Pressure and Temperature Transmitters for Bioreactor Process Verification
Bioreactor monitoring requires simultaneous pressure and temperature measurement at the same process point, confirming that culture temperature remains within specification while headspace pressure is maintained, and that SIP sterilisation temperatures and pressures are achieved for validated hold times:

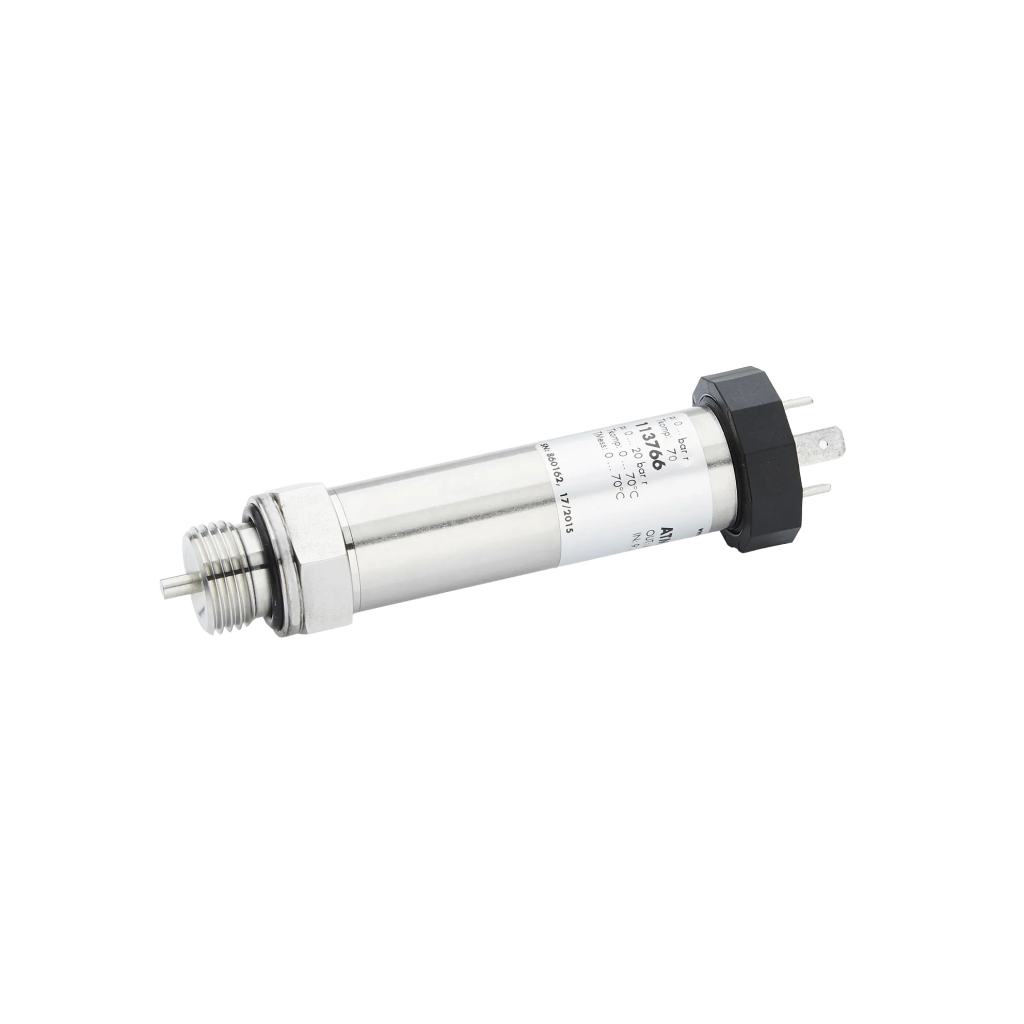

ATM/T.1ST Dual Output Pressure and Temperature Transmitter – Flush stainless steel diaphragm | Integrated temperature probe tip for media-close measurement | Dual 4-20 mA outputs (pressure + temperature) | Short response time | 316L stainless steel | For simultaneous bioreactor P+T verification, SIP cycle validation, and jacket supply/return monitoring from a single process penetration, reducing vessel nozzle count
ATM/T Dual Output Pressure and Temperature Transmitter – Flush diaphragm variant with dual 4-20 mA outputs | For additional P+T measurement points across the bioreactor suite
PID Controllers for Bioreactor Temperature Regulation
Closed-loop temperature control during bioreactor culture heating and cooling phases, SIP thermal management, and media preparation temperature regulation, ensuring that process thermal parameters remain within validated specification throughout every batch:
PUR-94 Advanced PID Controller – Dual control loops (heating + cooling) | Auto-tuning + Fuzzy Logic | Universal input (0/4-20 mA, 0-10 V, PT100, TC K/S/J/T/N/R/B/E) | REL/OC/analogue outputs | RS-485 Modbus RTU | 24 V transducer supply | LED display | Free S-Config software | Ideal for bioreactor jacket temperature regulation and media preparation vessel heating/cooling control
PUR-99 Two-Step Process Controller – Combined two-step + PID | Dual heating/cooling loops | Fuzzy Logic | For simpler bioreactor thermal control applications such as buffer preparation and WFI storage temperature maintenance
Multichannel Data Loggers for Bioreactor Batch Recording and GMP Compliance
Automated time-stamped logging of pressure, temperature, delta-P, and dissolved gas parameters across every bioreactor batch, providing the documentary evidence required for GMP compliance, regulatory submissions, batch release, deviation investigation, and process validation:
CMC-N16 Multicon Multichannel Controller and Data Logger – Up to 48 analogue + digital inputs | 8x PID control loops | Graphical touchscreen | RS485 Modbus | Ethernet/Modbus TCP/IP | Email alarm notifications | SCADA visualisation option | Data logging from 0.1 s rate | For centralised bioreactor suite batch recording, culture temperature/pressure trending, SIP validation logging, and multi-vessel monitoring from a single dashboard
Digital Pressure Gauges for Bioreactor Commissioning and Validation
Portable and fixed-mount battery-powered gauges for bioreactor vessel commissioning, pressure hold testing, SIP cycle verification, and IQ/OQ/PQ validation protocols:

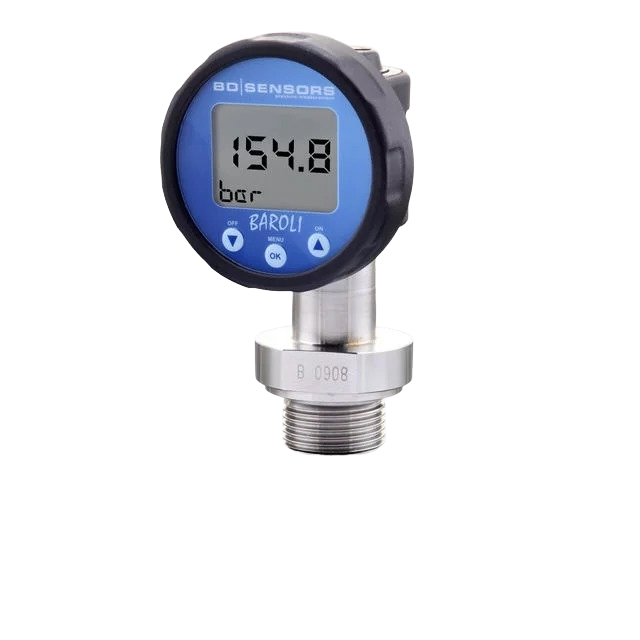

BAROLI 02 P Battery Powered Digital Pressure Gauge – 100 mbar to 40 bar | Flush stainless steel diaphragm | FDA-approved food-compatible materials | Rotatable display | Min/max function | For hygienic bioreactor pressure checks during commissioning, IQ/OQ validation, and routine maintenance verification
BAROLI 05 P Battery Powered Digital Pressure Gauge – 60-400 bar | Flush welded stainless steel diaphragm | FDA-approved oil filling | For high-pressure clean steam generator, compressed gas supply, and autoclave pressure verification
DL 01 Battery Powered Precision Digital Gauge for Leak Testing – 100 mbar to 400 bar | Integrated data logger (1 s to 99 days) | USB 2.0 | ATEX Zone 0/1 option | For bioreactor vessel pressure hold testing, sterile boundary integrity verification, and post-installation leak detection during commissioning and revalidation
Bioreactor Pressure Monitoring - Instrumentation Selection Guide
| Measurement Need | Recommended Product(s) | Key Feature |
|---|---|---|
| Headspace pressure (CIP/SIP) | DMP 331 P, DMP 331 P i | Flush, CIP/SIP 150 degrees C, pharma |
| Viscous broth / feed line pressure | DMP 333P, DMP 339P | Flush, cooling element, compact |
| Headspace pressure (IO-Link, CIP/SIP) | DCT 533 P | IO-Link V1.1, CIP/SIP 150 degrees C |
| Headspace pressure (IO-Link, ceramic) | DCT 553 P | Ceramic, IO-Link, dead-space-free |
| Multi-vessel bus (RS485 Modbus, EHEDG) | DCT 531 P | EHEDG, CIP/SIP 150 degrees C, Modbus |
| Precision (HART, SIL 2, GMP-validated) | X|act i, X|act ci, XMP i | HART, SIL 2, pharma/biotech |
| Precision pressure trending / R&D | DMP 331i / 333i | 16-bit DSP, 1:10 turn-down |
| Ceramic (caustic/acid CIP/SIP chemicals) | DMK 351 P, DMK 331 | Ceramic, PVDF, chemical resistant |
| Exhaust filter / TFF delta-P (with display) | DMD 831 | Delta-P, LED display, PNP alarm |
| Filter delta-P (ATEX) | DMD 331 | Piezoresistive SS, ATEX |
| Delta-P (HART, batch recording) | DPT 200 | HART, 100:1 rangeability |
| Delta-P (fast response, Modbus) | DPT 100 | 10 ms response, RS485, 0.1% FSO |
| Overpressure alarm (hygienic, CIP/SIP) | DS 400 P, DS 200 P | LED, PNP, CIP/SIP |
| Clean steam / SIP high-pressure switch | DS 201 P | Flush, 300 degrees C, multi-contact |
| Alarm switch (IO-Link) | DS 350 P | IO-Link, flush diaphragm |
| Simultaneous P + T (culture / SIP) | ATM/T.1ST, ATM/T | Dual 4-20 mA, flush, fast response |
| Culture / SIP temperature | TTT, TTTa | PT100/TC, robust, industrial |
| Bioreactor jacket PID control | PUR-94 | Dual-loop, auto-tune, Fuzzy Logic |
| Buffer / WFI temperature control | PUR-99 | Two-step + PID, heating/cooling |
| Multi-vessel batch logging and control | CMC-N16 | 48 inputs, PID, SCADA, Ethernet |
| Commissioning verification (hygienic) | BAROLI 02 P, BAROLI 05 P | Portable, FDA, flush, battery |
| Vessel integrity / leak testing | DL 01 | Data logger, USB, ATEX |
