Distillation Column Pressure Measurement
Distillation is the most widely used separation process in the chemical and petrochemical industry: atmospheric distillation columns, vacuum distillation columns, fractional distillation towers, packed columns, tray columns, reactive distillation columns, extractive distillation systems, azeotropic distillation units, steam strippers, and short-path distillation equipment all depend on precisely controlled and continuously measured column pressure to achieve the target separation efficiency, product purity, energy efficiency, and throughput. Column pressure directly determines the boiling points of the components being separated, the vapour-liquid equilibrium across every theoretical stage, the reflux ratio, the reboiler duty, the condenser load, and the overall column hydraulic performance. Whether the application involves atmospheric crude oil fractionation, vacuum distillation of heavy residues, solvent recovery under reduced pressure, high-purity chemical separation, or reactive distillation with simultaneous reaction and separation, the pressure at the column top, column base, across individual tray sections, across packed bed sections, at the reboiler, at the condenser, in the reflux drum, and across the overhead and bottoms product systems must be measured with instruments capable of delivering the accuracy, stability, chemical resistance, and hazardous area certification that distillation operations demand.
Distillation column pressure measurement requires instrumentation that can operate reliably in ATEX/IECEx-classified hazardous atmospheres, withstand sustained exposure to corrosive vapours, condensing liquids, and fouling process media, deliver high accuracy and long-term stability at pressures ranging from deep vacuum through to elevated positive pressures, and provide the fast response, rangeability, and digital communication capabilities needed for modern DCS-integrated column pressure control and optimisation. A single measurement error, undetected drift, or instrument failure on a distillation column can result in off-specification product, flooding, weeping, entrainment, column instability, energy waste, environmental emissions, or safety incidents.
At Stork Solutions, we supply a comprehensive range of ATEX/IECEx-certified pressure transmitters, differential pressure transmitters for tray and packing delta-P, ceramic sensor transmitters for corrosive distillation media, low-pressure and vacuum transmitters, flush-diaphragm transmitters for fouling service, electronic pressure switches, dual-output pressure and temperature transmitters, PID controllers, and multichannel data loggers engineered for distillation column pressure measurement across the full spectrum of chemical and petrochemical distillation applications.
Product Spotlight for Distillation Column Pressure Measurement
Why Specialist Instrumentation Is Needed for Distillation Column Pressure Measurement
Distillation columns present a uniquely demanding combination of measurement challenges:
Column pressure control is the primary control variable – distillation column pressure directly determines the temperature profile across the column, the vapour-liquid equilibrium on every tray or packing section, and the energy balance between reboiler and condenser; accurate, stable, and responsive column top pressure measurement is fundamental to effective column control and product quality
Wide pressure operating range – distillation columns operate from deep vacuum (vacuum distillation of thermally sensitive or high-boiling-point materials at pressures as low as 1-50 mbar absolute) through atmospheric pressure to elevated pressures (pressurised distillation for low-boiling-point components, high-pressure fractionation); instruments must cover the full range with appropriate accuracy at each operating point
Differential pressure across trays and packing – delta-P measurement across tray sections and packed bed sections is the primary diagnostic for column hydraulic performance, providing real-time indication of flooding, weeping, foaming, fouling, tray damage, and packing degradation; DP transmitters must deliver high resolution at low differential pressures while withstanding high static column pressure
Corrosive vapours and condensing liquids – distillation of acids, chlorinated solvents, amine solutions, caustic streams, and reactive intermediates exposes pressure sensors to sustained corrosive attack from both vapour and liquid phases; ceramic sensors and corrosion-resistant wetted materials are essential for long service life
Fouling and polymerising media – distillation of heavy hydrocarbons, polymeric materials, tar-forming compounds, and crystallising solutions can foul conventional pressure ports and impulse lines; flush-diaphragm construction prevents blockage and ensures continuous measurement
Explosive and hazardous atmospheres – distillation columns processing flammable solvents, hydrocarbons, and volatile chemicals create ATEX Zone 1 and Zone 2 classified hazardous areas; all instrumentation must carry appropriate ATEX/IECEx certification for the zone present
Temperature extremes – reboiler outlet temperatures can exceed 300 degrees C on heavy hydrocarbon columns, while vacuum condenser circuits may operate at sub-ambient temperatures; instruments and their process connections must tolerate the full thermal range without accuracy degradation
Column dynamics and pressure transients – feed rate changes, reflux ratio adjustments, product draw-off variations, and reboiler duty changes create dynamic pressure transients across the column; transmitters must respond quickly enough to support tight column pressure control without introducing measurement lag
Safety instrumented functions – column overpressure protection, high-pressure trip initiation, vacuum break protection, and emergency shutdown require SIL 2 rated pressure transmitters integrated into the plant safety instrumented system (SIS)
Energy optimisation – distillation is the largest single energy consumer in most chemical and petrochemical plants; accurate column pressure measurement enables advanced control strategies (model predictive control, pressure-compensated temperature control) that reduce reboiler energy consumption
Regulatory compliance and documentation – COMAH, Seveso III, EPA RMP, and environmental permit conditions require continuous, time-stamped pressure records for column operation, deviation investigation, emissions verification, and regulatory audit
Column Top and Base Pressure Transmitters
The primary pressure measurement points on any distillation column: column overhead (top) pressure for column pressure control, and column base (sump/bottoms) pressure for reboiler circuit monitoring, liquid level inference, and base pressure trending:
DMP 331 Industrial Pressure Transmitter for Low Pressure – 100 mbar to 60 bar | Piezoresistive stainless steel sensor | 4-20 mA / 0-10 V | ATEX Ex ia | SIL 2 | The general-purpose ATEX transmitter for atmospheric and pressurised distillation column top and base pressure measurement; SIL 2 certification supports column overpressure protection and safety instrumented functions; proven long-term stability ensures minimal measurement drift between calibration intervals on continuously operating columns
DMP 331 P Industrial Pressure Transmitter – 100 mbar to 40 bar | Flush diaphragm | CIP/SIP 150 degrees C | Vacuum resistant | IS Ex ia | SIL 2 | Optional Hastelloy or Tantalum diaphragm | Cooling element to 300 degrees C | For flush-mounted column base pressure measurement where heavy residues, polymerising bottoms, tar-forming compounds, or crystallising salts would block conventional pressure ports; Hastelloy and Tantalum diaphragm options provide enhanced corrosion resistance for columns distilling aggressive chemical media; cooling element extends service to high-temperature reboiler outlet connections
DMP 331 P i Precision Pressure Transmitter – 400 mbar to 40 bar | 16-bit digital signal processing | Turn-down 1:10 | 0.04% FSO/10K temperature response | For precision column pressure measurement where tight temperature coefficient performance maintains measurement accuracy despite the significant temperature gradients between column top (condenser side) and column base (reboiler side) installations

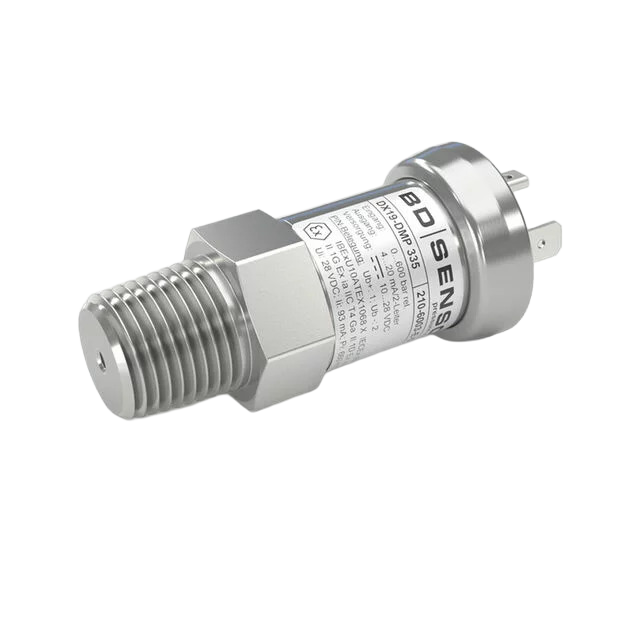

DMP 335 Industrial Pressure Transmitter – 10 bar to 600 bar | Welded stainless steel sensor (no fill fluid, no elastomeric seals) | ATEX Ex ia | Suitable for oxygen applications | Insensitive to pressure peaks | For pressurised distillation columns and high-pressure fractionation systems where oil-fill elimination reduces maintenance risk and the welded sensor construction provides immunity to pressure spikes from column upset conditions
DMP 339 Industrial Pressure Transmitter – Compact industrial design | ATEX Ex ia | For auxiliary column pressure measurement including reflux drum pressure, overhead accumulator pressure, condensate receiver pressure, and utility systems serving the distillation column
DMP 339P Flush Pressure Transmitter with G1/4 inch port – Compact flush-mount | For pressure measurement at compact column nozzles, sampling points, instrument tappings on small-bore column pipework, and space-constrained locations on column auxiliaries
Vacuum and Low-Pressure Transmitters for Vacuum Distillation
Vacuum distillation columns separating thermally sensitive compounds, high-boiling-point materials, heavy hydrocarbon fractions, and heat-sensitive pharmaceutical and fine chemical intermediates operate at pressures ranging from 1 mbar to atmospheric, requiring instruments with exceptional low-pressure accuracy, resolution, and long-term stability:
DMP 343 Industrial Pressure Transmitter – 10 mbar to 1,000 mbar | Excellent linearity | Minimal thermal effect | Superior long-term stability | ATEX Ex ia | The primary transmitter for vacuum distillation column pressure measurement; 10 mbar low-end capability covers deep vacuum distillation applications; excellent linearity and minimal thermal effect ensure accurate pressure control at the low absolute pressures where even small measurement errors significantly affect the temperature profile and separation performance
DMK 351 Pressure Transmitter – Capacitive ceramic sensor (99.9% Al2O3) | 40 mbar to 20 bar | High overpressure capability | ATEX Ex ia (gas and dust) | For vacuum and low-pressure distillation of corrosive media where the ceramic sensor provides both excellent low-pressure measurement capability and inherent resistance to corrosive vapours and condensates
DMK 351 P Pressure Transmitter for the Process Industry – Capacitive ceramic sensor | 40 mbar to 20 bar | Dead-space-free hygienic connections | IS Ex ia | For vacuum distillation columns processing viscous, fouling, or crystallising distillation bottoms where flush-diaphragm construction prevents port blockage while ceramic chemical resistance handles corrosive column media
Ceramic Sensor Pressure Transmitters for Corrosive Distillation Media
For distillation columns processing corrosive acids, caustic alkalis, chlorinated solvents, amine solutions, phenolic compounds, and other chemically aggressive vapours and liquids where conventional stainless steel oil-filled sensors risk diaphragm corrosion, fill-fluid degradation, or accelerated measurement drift:
DMK 331 Industrial Pressure Transmitter – Capacitive ceramic sensor (99.9% Al2O3) | 400 mbar to 600 bar | G1/2 inch flush port for pasty/polluted media | Open port PVDF for aggressive media | ATEX Ex ia | SIL 2 | The primary ceramic transmitter for corrosive distillation column pressure monitoring; PVDF port option provides direct compatibility with strong acids and aggressive solvents in the vapour and liquid phases present throughout the column; SIL 2 certification supports column safety instrumented functions
DMK 331 P Industrial Pressure Transmitter – Capacitive ceramic sensor | Flush diaphragm | ATEX Ex ia | For flush-mounted column pressure measurement on distillation columns where corrosive, fouling, or polymerising media require both ceramic chemical resistance and flush-diaphragm construction to prevent blockage
XMP ci Process Pressure Transmitter with HART – Capacitive ceramic sensor (99.9% Al2O3) | 160 mbar to 20 bar | HART | Two-chamber aluminium die-cast or stainless steel field housing | Intrinsic safety (ia) and flameproof (d) options | Turn-down 1:5 | For HART-integrated corrosive distillation column pressure monitoring with DCS asset management, predictive diagnostics, and centralised instrument health monitoring across multi-column distillation trains
X|act ci Precision Pressure Transmitter – Capacitive ceramic sensor (99.9% Al2O3) | 160 mbar to 20 bar | HART option | Flush-mounted | ATEX Ex ia option | For precision distillation column pressure measurement where ceramic sensor stability supports extended recalibration intervals on continuously operating columns distilling corrosive chemical media
Differential Pressure Transmitters for Column Tray and Packing Delta-P
Differential pressure measurement across distillation column tray sections, packed bed sections, and column internals is the primary real-time diagnostic for column hydraulic health. Rising delta-P indicates flooding, foaming, fouling, or tray damage. Falling delta-P indicates weeping, dry trays, or packing degradation. Trending delta-P over time provides predictive maintenance data for scheduling column turnarounds and internal inspections:
DPT 200 Differential Pressure Transmitter with HART – 1 mbar to 20 bar | Static pressure to 400 bar | HART | 100:1 rangeability | ATEX Ex ia / Ex d | LC display | The flagship differential pressure transmitter for distillation column tray and packing delta-P monitoring; 100:1 rangeability enables a single device to measure across the full range of column hydraulic conditions from normal operation through incipient flooding; 1 mbar low-end sensitivity detects subtle changes in column hydraulic performance; HART connectivity supports DCS-integrated trending, predictive maintenance analytics, and centralised asset management across multi-column distillation complexes
DPT 100 Differential Pressure Transmitter – 10 mbar to 20 bar | Static pressure to 400 bar | RS485 Modbus RTU | Fast response time (10 ms) | 0.1% FSO accuracy | For fast-response column delta-P monitoring where rapid detection of flooding onset, foaming events, and column upset conditions is critical; 10 ms response time captures transient hydraulic events that slower instruments would miss; Modbus connectivity enables multi-point column delta-P monitoring on a digital bus architecture
DMD 831 Differential Pressure Transmitter with Display and Contact – 1 bar to 70 bar | Dual piezoresistive stainless steel sensors | 4-digit LED display | PNP alarm contact | For column section delta-P monitoring with local LED display providing visual indication for column operators during plant walkdowns, combined with PNP alarm contact for automated high-delta-P (flooding) alarm notification to the control room
DMD 331 Differential Pressure Transmitter – 20 mbar to 16 bar | Piezoresistive stainless steel | ATEX Ex ia | 30x static overpressure | For column tray and packing delta-P monitoring in ATEX-classified hazardous areas across the distillation unit; 30x static overpressure capability protects the instrument during column pressure excursions and startup/shutdown pressure cycling
High-Pressure Transmitters for Pressurised Distillation
Pressurised distillation columns, high-pressure fractionation towers, de-ethanisers, de-propanisers, de-butanisers, and high-pressure absorption columns operating at elevated pressures require transmitters engineered for sustained high-pressure service:
DMP 333 Industrial Pressure Transmitter for High Pressure – 100 bar to 600 bar | Piezoresistive stainless steel | ATEX Ex ia | SIL 2 | Excellent long-term stability under high dynamic pressure loads | Insensitive to pressure peaks | For high-pressure fractionation column pressure measurement where sustained high-pressure operation demands proven long-term stability and insensitivity to the pressure transients associated with column feed rate changes and control valve actuation
DMP 334 Industrial Pressure Transmitter for High Pressure – 600 bar to 2,200 bar | Thin-film sensor welded directly to pressure port | ATEX Ex ia | For ultra-high-pressure distillation and fractionation processes operating above 600 bar where welded sensor construction eliminates seal failure risk
DMP 334 i Precision Pressure Transmitter for High Pressure – High-pressure range | 16-bit digital signal processing | Turn-down 1:10 | Active correction of non-linearity and thermal error | For precision high-pressure column pressure control where tight measurement accuracy supports optimised separation performance and energy-efficient operation of pressurised fractionation systems
Precision Process Transmitters with HART and SIL 2 for Column Safety
For distillation column safety instrumented systems (SIS), DCS-integrated column pressure control loops, HART-enabled asset management, and safety-critical overpressure protection where functional safety certification and digital communication are mandatory:
X|act i Precision Pressure Transmitter (SIL 2) – 400 mbar to 40 bar | HART | SIL 2 | Turn-down 1:10 | Flush welded diaphragm | ATEX Ex ia | Cooling element to 300 degrees C | For SIL 2 column overpressure protection and vacuum break protection where HART connectivity enables simultaneous safety and asset management from a single instrument; cooling element extends service to high-temperature column base and reboiler connections
XMP i Precision Pressure Transmitter with HART and SIL 2 – 400 mbar to 600 bar | HART | SIL 2 | Turn-down 1:10 | For column SIS integration across the full pressure range from vacuum distillation through high-pressure fractionation; emergency shutdown (ESD) pressure trips, relief system monitoring, and column overpressure protection with SIL 2 integrity and HART communication
DMP 331i / DMP 333i Precision Pressure Transmitter – 400 mbar to 600 bar | 16-bit digital signal processing | Turn-down 1:10 | Thermal error as low as 0.02% FSO/10K | For precision column pressure control loop integration where the lowest possible thermal error is critical for maintaining accurate pressure-compensated temperature control across the significant temperature gradient between column top and base measurement points
IO-Link Smart Transmitters for Digitalised Distillation Plants
IO-Link-enabled column pressure monitoring supports faster commissioning across multi-column distillation trains, real-time sensor health diagnostics confirming measurement readiness before column startup, centralised device management, and predictive maintenance through continuous sensor condition monitoring:

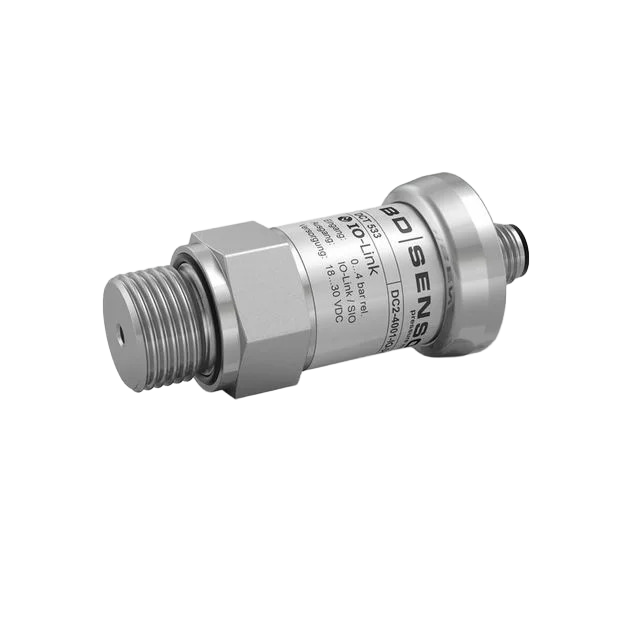

DCT 533 P Industrial Pressure Transmitter with IO-Link – 100 mbar to 40 bar | IO-Link V1.1 | CIP/SIP cleaning up to 150 degrees C | Flush hygienic pressure port | IP 67/IP 69 | Cooling element to 300 degrees C | For IO-Link-connected flush-diaphragm column pressure monitoring on columns processing fouling, polymerising, or heavy residue bottoms with automated device parameterisation, sensor health verification, and digital diagnostics
DCT 553 P Industrial Pressure Transmitter with IO-Link – Capacitive ceramic sensor (99.9% Al2O3) | 40 mbar to 20 bar | IO-Link V1.1 | Dead-space-free | High overpressure capability | For IO-Link column monitoring where ceramic media resistance provides direct compatibility with corrosive distillation vapours and condensates and IO-Link enables centralised device management across multi-column chemical plants
DCT 531 P Industrial Pressure Transmitter with RS485 Modbus RTU – 100 mbar to 40 bar | RS485 Modbus RTU | EHEDG certified | CIP/SIP cleaning up to 150 degrees C | IP 67/IP 69 | Up to 247 devices on a single bus | For multi-column Modbus bus architectures across large distillation complexes where dozens of columns, condensers, reboilers, reflux drums, and product systems require digital pressure monitoring from a centralised DCS/SCADA master
Dual-Output Pressure and Temperature Transmitters for Column Monitoring
Simultaneous pressure and temperature measurement from a single process penetration on the column provides correlated P+T data for pressure-compensated temperature control, vapour-liquid equilibrium verification, product composition inference, and column performance optimisation:
ATM/T.1ST Dual Output Pressure and Temperature Transmitter – Flush stainless steel diaphragm | Integrated temperature probe tip | Dual 4-20 mA outputs (pressure + temperature) | Short response time | 316L stainless steel | For simultaneous column pressure and temperature measurement enabling pressure-compensated temperature control, the most effective distillation control strategy; correlated P+T data from a single nozzle reduces vessel penetrations and provides the thermodynamic state data needed for real-time composition inference and advanced column optimisation
ATM/T Dual Output Pressure and Temperature Transmitter – Flush diaphragm variant with dual 4-20 mA outputs | For additional correlated P+T measurement points on reboiler circuits, condenser outlets, reflux streams, side-draw product lines, and overhead vapour systems
Electronic Pressure Switches for Column Safety and Interlock
Automated alarm switching for column overpressure protection, high-pressure trip initiation, vacuum break alarm, low condenser pressure alarm, reboiler overpressure trip, and distillation column safety interlock integration:
DS 200 P Electronic Pressure Switch – 100 mbar to 40 bar | 1, 2, or 4 PNP contacts | 4-20 mA / 0-10 V analogue output | 4-digit LED display | IS Ex ia option | For multi-contact column alarm switching providing independent outputs for high-pressure warning, high-high pressure trip, vacuum break alarm, and emergency shutdown initiation from a single instrument
DS 201 P Electronic Pressure Switch – 60-400 bar | Flush stainless steel diaphragm | Cooling element to 300 degrees C | 1, 2, or 4 PNP contacts + analogue output | For high-pressure fractionation column overpressure alarm and trip switching and high-temperature reboiler circuit overpressure protection
DS 400 P Intelligent Electronic Pressure Switch – 100 mbar to 40 bar | Hygienic stainless steel | 1 or 2 PNP contacts | 4-20 mA analogue output | 4-digit LED display | IS Ex ia | For column pressure excursion alarm switching with local LED display for operator visibility during column walkdowns and routine inspections
DS 350 P Electronic Pressure Switch with IO-Link – IO-Link interface | Flush diaphragm | For digitally connected column alarm switching on IO-Link bus architectures with centralised alarm management and real-time switch health diagnostics across multi-column distillation units
Distillation Column Pressure Measurement - Instrumentation Selection Guide
| Measurement Need | Recommended Product(s) | Key Feature |
|---|---|---|
Column top/base pressure (ATEX, SIL 2) | DMP 331 | ATEX Ex ia, SIL 2, proven stability |
Column base, fouling/heavy bottoms (flush) | DMP 331 P | Flush, SIL 2, Hastelloy/Tantalum, 300 degrees C |
Precision column pressure (low temp coeff) | DMP 331 P i | 16-bit DSP, 1:10 turn-down |
Pressurised column, no oil-fill | DMP 335 | Welded SS, spike insensitive, ATEX |
Reflux drum / condenser / auxiliary | DMP 339, DMP 339P | Compact, ATEX, flush |
Vacuum distillation (deep vacuum) | DMP 343 | 10 mbar, excellent linearity, ATEX |
Vacuum + corrosive media (ceramic) | DMK 351, DMK 351 P | Ceramic, high overpressure, flush |
Corrosive media (ceramic, PVDF, SIL 2) | DMK 331 | Ceramic, PVDF, ATEX, SIL 2 |
Corrosive media (ceramic, flush) | DMK 331 P | Ceramic, flush, ATEX |
Corrosive media (ceramic, HART, process) | XMP ci, X|act ci | Ceramic, HART, ATEX |
High-pressure fractionation (100-600 bar) | DMP 333 | ATEX, SIL 2, spike insensitive |
Ultra-high-pressure distillation (600-2,200 bar) | DMP 334, DMP 334 i | Welded thin-film, precision |
HART + SIL 2 column SIS | X|act i, XMP i | HART, SIL 2, 300 degrees C cooling |
Precision trending / optimisation | DMP 331i / 333i | 0.02% FSO/10K, 1:10 turn-down |
Tray/packing delta-P (HART, 100:1) | DPT 200 | HART, 1 mbar, 100:1 rangeability |
Tray/packing delta-P (fast response, Modbus) | DPT 100 | 10 ms, RS485, 0.1% FSO |
Column section delta-P (display + alarm) | DMD 831 | LED display, PNP alarm |
Delta-P in ATEX areas | DMD 331 | ATEX Ex ia, 30x overpressure |
IO-Link, flush, fouling service | DCT 533 P | IO-Link, CIP/SIP 150 degrees C |
IO-Link, ceramic, corrosive vapours | DCT 553 P | Ceramic, IO-Link, dead-space-free |
Multi-column Modbus bus | DCT 531 P | EHEDG, Modbus, 247 devices |
Correlated P+T (pressure-comp temp control) | ATM/T.1ST, ATM/T | Dual 4-20 mA, flush |
Multi-contact column alarm (ATEX) | DS 200 P | 1-4 PNP, analogue, ATEX |
High-pressure column alarm/trip | DS 201 P | 60-400 bar, 300 degrees C |
Column alarm with display | DS 400 P | LED, PNP, Ex ia |
IO-Link column alarm switching | DS 350 P | IO-Link, flush |
Column tray / condenser / reboiler temp | TTT, TTTa | PT100/TC, robust |
Column pressure PID control | PUR-94 | Dual-loop, Fuzzy Logic, Modbus |
Simple column vent / vacuum switching | PUR-99 | Two-step + PID |
Multi-point column documentation | CMC-N16 | 48 inputs, SCADA, Ethernet |
Commissioning / maintenance verification | BAROLI 02 P, BAROLI 05 P | Portable, flush, battery |
Column pressure hold / vacuum leak test | DL 01 | Data logger, ATEX, USB |
